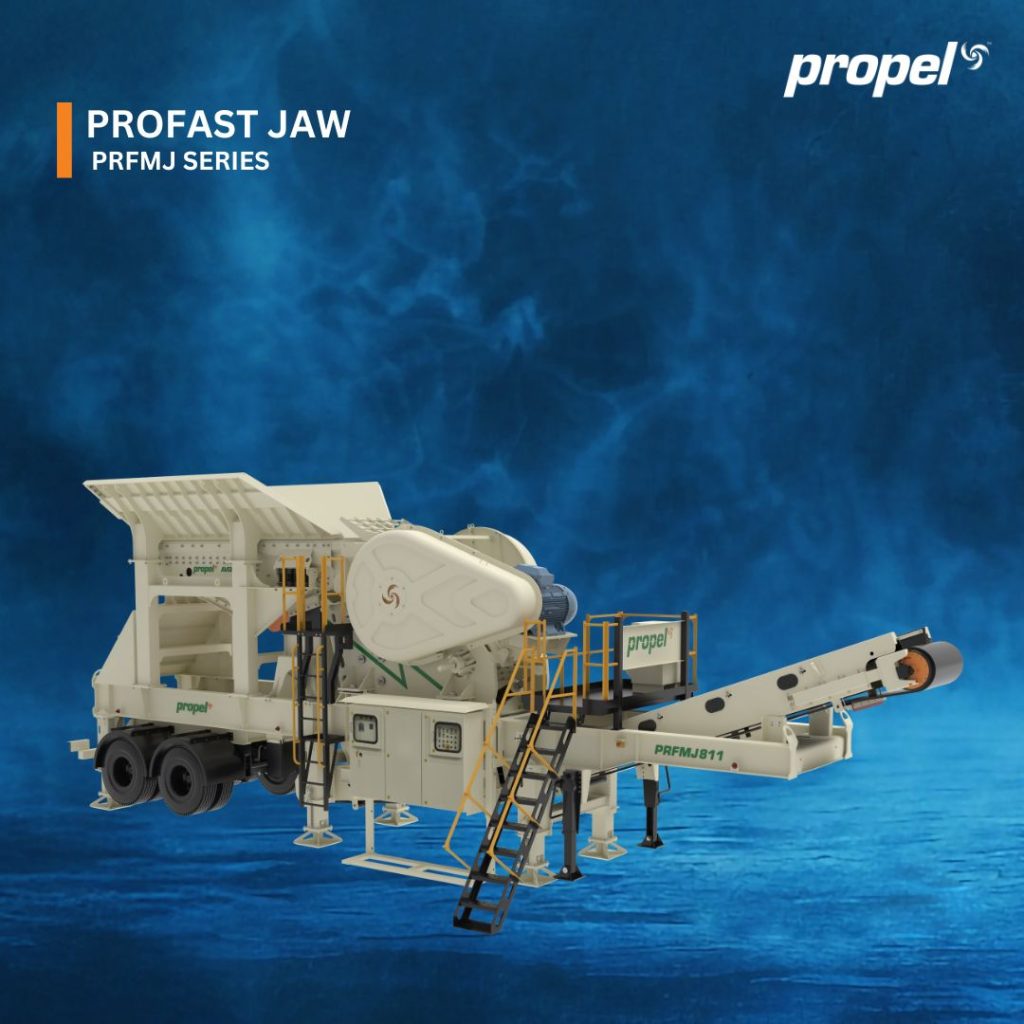

Wheel Mounted Profast Jaw

PRFMJ Series

The Profast Jaw Series is a robust mobile crushing solution built to tackle the toughest rocks. With integrated multi-stage crushing and screening, it delivers high-quality aggregates and sand while ensuring smooth, reliable operation.

Highlights and information

Highlights of Wheel Mounted Profast Jaw

Auto Feeding System: Ultrasonic sensor ensures uniform, continuous choke feeding.

Hopper: Heavy-duty flared hopper handles high volumes and impact.

Jaw Crusher: Accepts large feed with optimised design and reversible plates.

Motorised Pulley: Maintenance-free, compact drive reduces mounting load.

Triple Axle Assembly: Allows faster and easier equipment transport.

Hydraulic Legs: Speeds up plant setup with quick hydraulic erection.

Control Panel: Features a modern PLC system for efficient control.

IoT Enabled: Real-time monitoring helps prevent issues and minimise downtime.

More Features: Flexible layout, low OPEX, built-in conveyors, quick transport, safety guards, walkways, and optional VFD or scalp conveyor.

TECHNICAL DATA

Series
Units
PRFMJ 811
PRFMJ 811 V2
PRFMJ 912
Model
AVJ 811 (S)
AVJ 811 V2
AVJ 912
Feed Opening (W x L)
mm
(inch)
750 x 1064
(30.0 x 42.0)
840 x 1090
(33.1 x 42.9)
1250 X 980
(49.2 x 38.5)
Feed Size (Max.)
mm
(inch)
635
(25.0)
715
(28.2)
830
(32.7)
CSS Range
mm
(inch)
75 - 200
(3.0 - 8.0)
75 - 225
(3.0 - 9.0)
100-250
(3.94-9.84)
*Capacity
TPH
150-400
150-500
200-700
Crusher Weight
kg (Ton)
20700
(20.7)
23000
(23.0)
32000
(32)
Toggle Mechanism
Single Toggle Type
Single Toggle Type
Single Toggle Type
Construction
High Grade Carbon Steel with Welded Structure
High Grade Carbon Steel with Welded Structure
High Grade Carbon Steel with Welded Structure
Feeder
Units
PRFMJ 811
PRFMJ 811 V2
PRFMJ 912
Model
AVGF 1142 V2
AVGF 1142 V2
AVGF 1344 V2
Tray Dimension (W x L)
mm
(inch)
1100 x 4200
(43.3 x 165.3)
1100 x 4200
(43.3 x 165.3)
1300 X 4400
(51.2x173.2)
Axle
Units
PRFMJ 811
PRFMJ 811 V2
Axle Assembly
Double Axle
Double Axle
Triple Axle
Electrical
Units
PRFMJ 811
PRFMJ 811 V2
Jaw Motor Power
kW
(hp)
110
(150)
110
(150)
160
(220)
Total Power
kW
(hp)
135
(180)
135
(180)
190
(255)

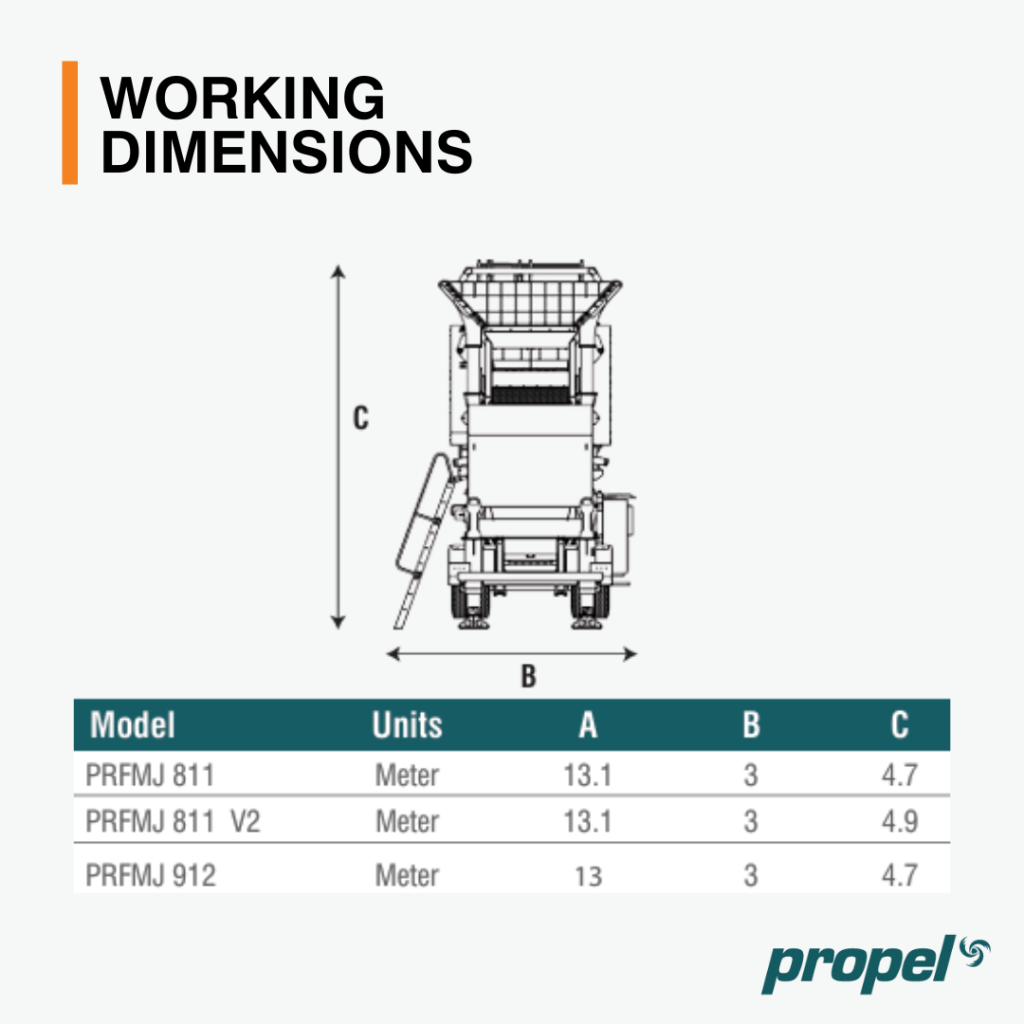

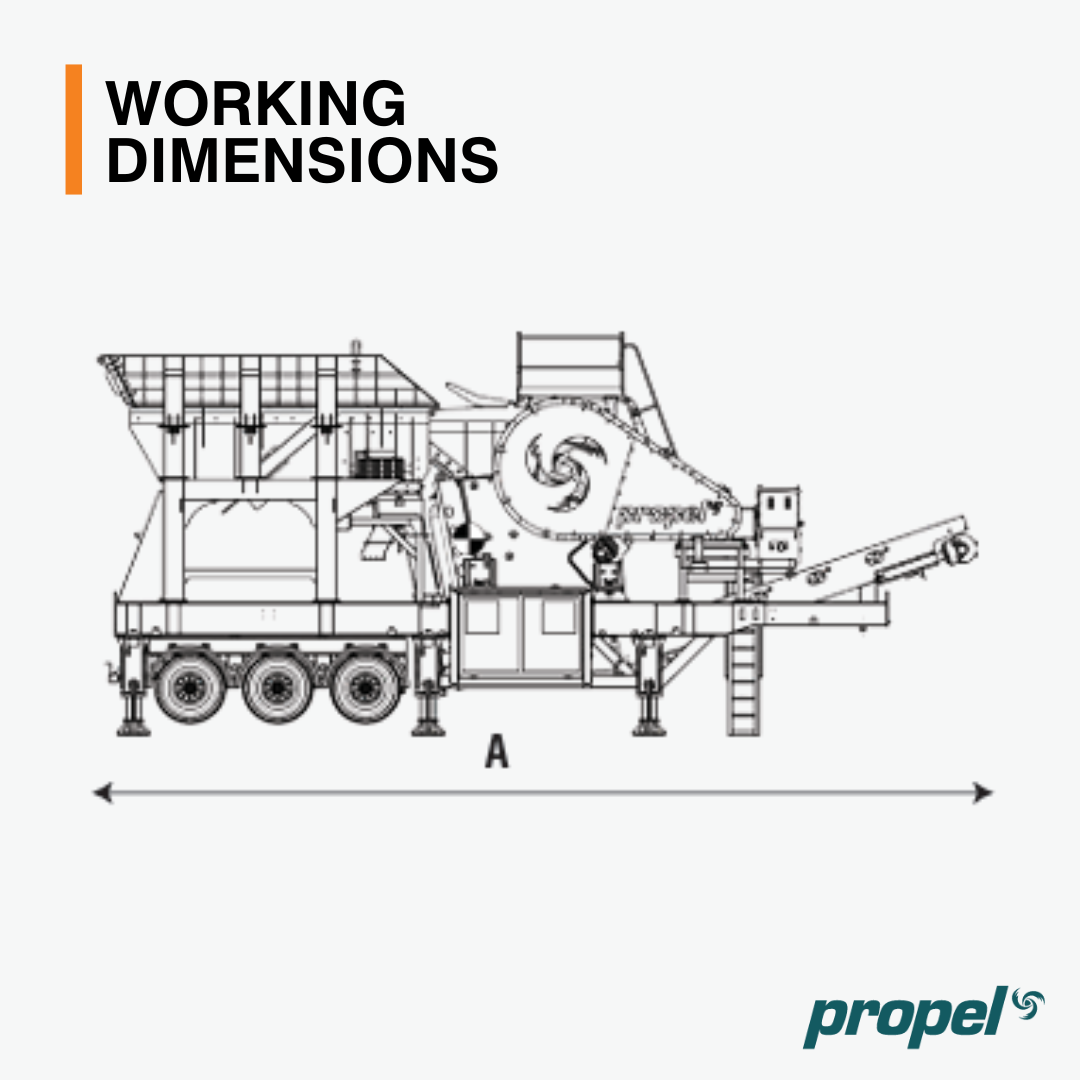

Dimensions
Units
PRFMJ 811
PRFMJ 811 V2
Transport ( L x W x H )
Meter
(Feet)
13.1 x 3 x 4.7
(43'1" x 9'10" x 15'7")
13.1 x 3 x 4.9
(43'1" x 9'10" x 16'2")
13 x 3 x 4.7
(42' 8" x 11' 2" x 15'7")
**Weight
kg (lbs)
42500 (93696)
45000 (99208)
60500 (133380)
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
