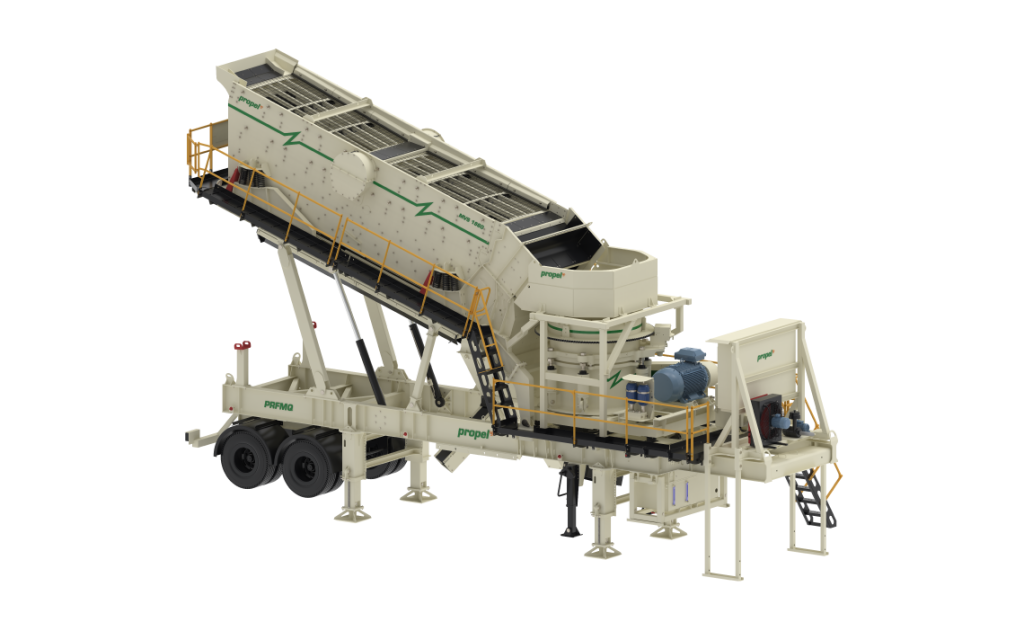

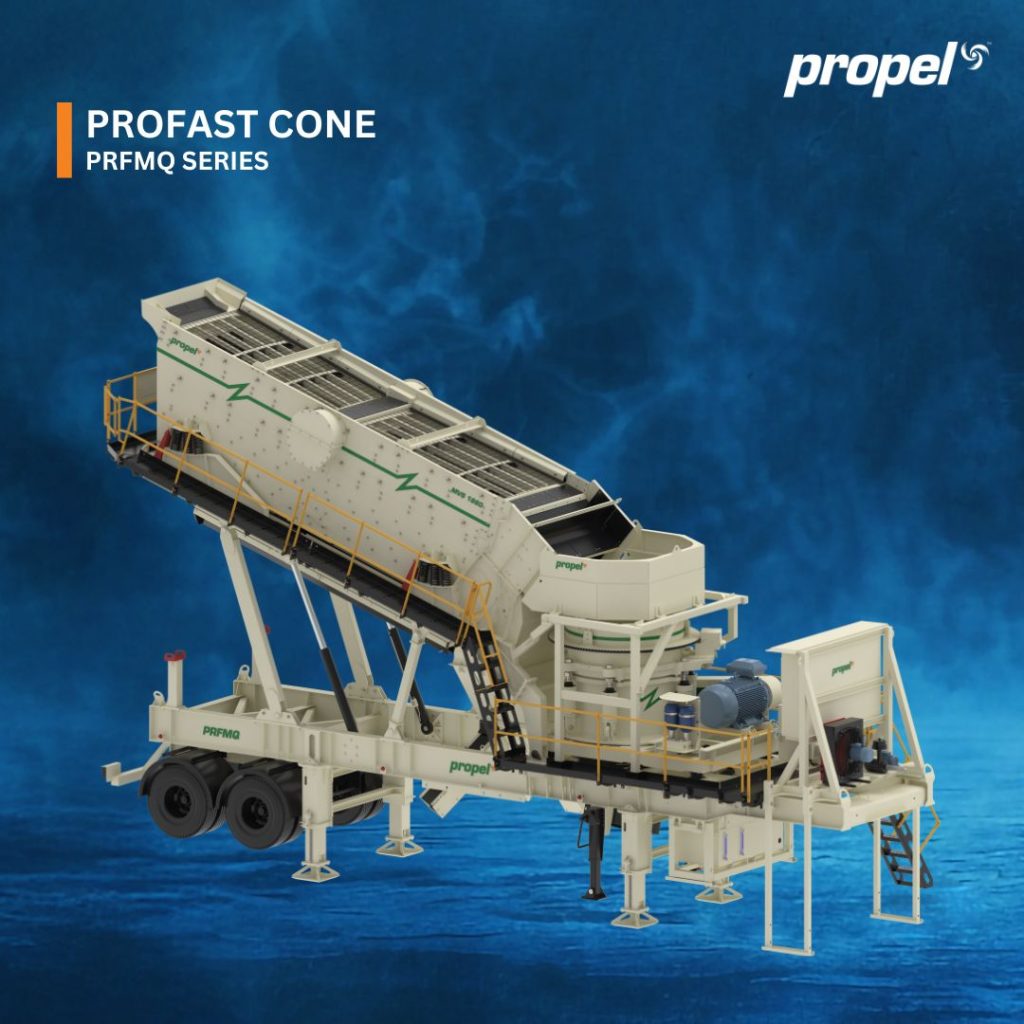

Wheel Mounted Profast Cone

PRFMQ Series

Profast Cone Crushers (PRFMQ): Engineered for the most challenging quarrying and mining tasks, the PRFMQ Series offers a powerful blend of crusher speed, throw, and cavity design. Its mobile design allows for easy towing between sites, ensuring flexibility and consistent performance.

Highlights and information

Highlights of Wheel Mounted Profast Cone PRFMQ Series

Dual Slope Vibrating Screen 1860: Dual-slope design ensures better material separation and higher screening efficiency.

Chute: The Gate and path chute system allows product variation and easy conveyor alignment.

Cone Crusher – QM: Large mantle diameter and optimised speed improve productivity.

Triple Axle Assembly: Allows faster and more efficient transport of the equipment.

Control Panel: Integrated with a PLC system for streamlined operation.

IoT Enabled: Real-time monitoring helps prevent issues and minimise downtime.

More Features: Stable performance, fast site-to-site transport, low OPEX, and walkways built to international standards.

TECHNICAL DATA

Series
Units
PRFMQ 250
PRFM SQM 230
PRFM SQM 320
PRFM Q350
Feed Opening
mm
(inch)
220
(8.7)
85
(3.3)
100
(3.9)
260
(10.2)
CSS Range
mm
(inch)
26 - 45
(1.0 - 1.8)
15-30
(0.6-1.2)
15-35
(0.6-1.4)
30 - 50
(1.2-2.0)
*Capacity
TPH
150-380
125-250
180-375
215-540
Vibrating Screen
Units
PRFMQ 250
PRFM SQM 230
PRFM SQM 320
PRFM Q350
Vibrating Screen
DS-1860
DS-1860
MVS-2060
MVS-2060
Size (W x L)
mm
(inch)
1850 x 6000
(72.8 x 236.2)
1850 x 6000
(72.8 x 236.2)
2000 x 6000
(78.7 x 236.2)
2000 x 6000
(78.7 x 236.2)
Number of Decks
4
4
4
4
AXLE
Units
Axle Assembly
Double Axle
Double Axle
Triple Axle
Triple Axle
Electrical
Units
Motor Power
kW
(hp)
187
(250)
187
(250)
220
(295)
220
(295)
Total Power
kW
(hp)
220
(295)
220
(295)
242
(324.5)
242
(324.5)

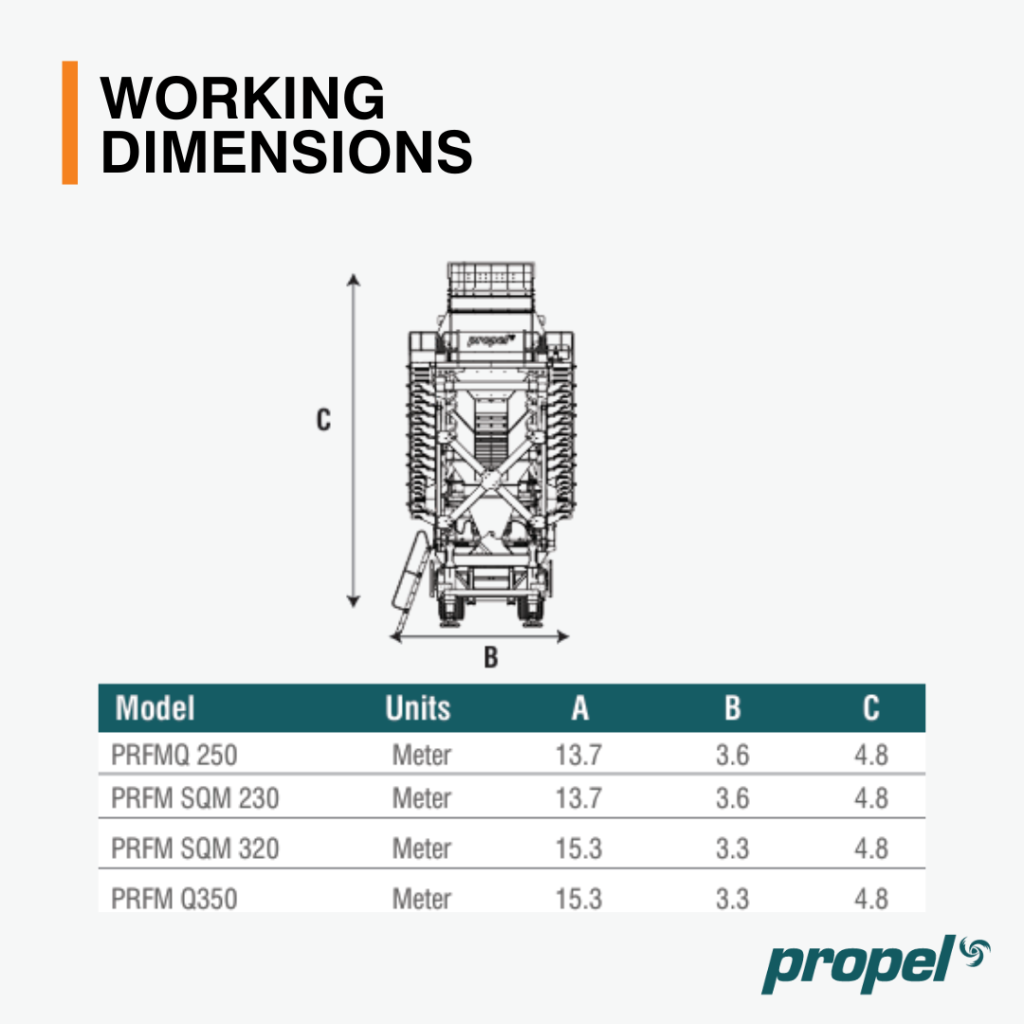

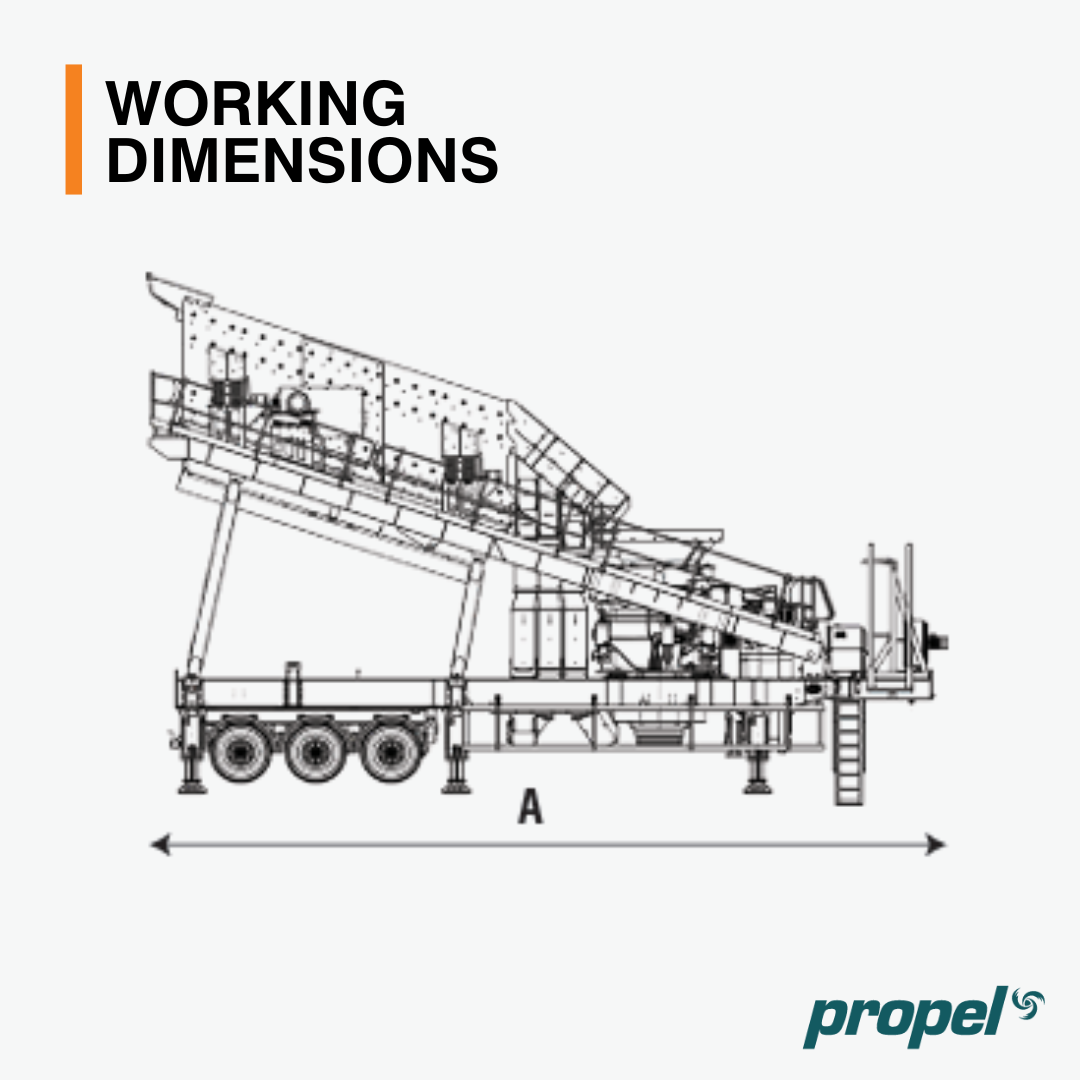

Dimensions
Units
Transport ( L x W x H )
Meter
(Feet)
13.7 x 3.6 x 4.8
(45'1" x 11' 9" x 15' 9" )
13.7 x 3.6 x 4.8
(45'1" x 11' 9" x 15' 9" )
15.3 x 3.3 x 4.8
(50'5" x 10'11" x 15'11")
15.3 x 3.3 x 4.8
(50'5" x 10'11" x 15'11")
**Weight
kg (lbs)
45000 (99208)
45000 (99208)
58500 (128970)
58500 (128970)
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
