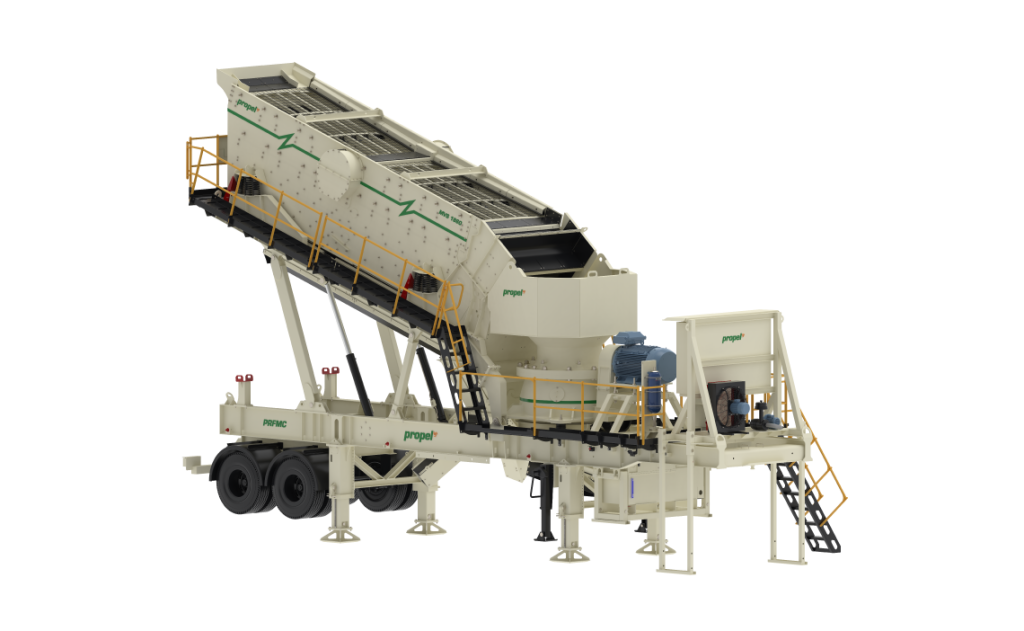

Wheel Mounted Profast Cone

PRFMC Series

Profast Cone Crushers (PRFMC): Built for demanding quarrying and mining environments, the Profast Cone Crushers combine optimal speed, throw, and cavity design for superior performance. Compact and mobile, they can be easily towed between sites for flexible operation.

Highlights and information

Highlights of Wheel Mounted Profast Cone PRFMC Series

Dual Slope 1860: Dual-slope design offers full-length material separation and superior screening efficiency.

Chute: Gate system and adjustable path chute enable multiple product outputs and conveyor alignment.

Cone Crusher – AVC: Larger mantle and optimised speed boost crushing performance.

Control Panel: The Advanced PLC system ensures smooth and efficient control.

Double Axle Assembly: Enables quick and easy transport of the equipment.

Hydraulic Legs: Allows faster setup and plant erection on-site.

IoT Enabled: Real-time monitoring reduces downtime and supports proactive maintenance.

More Features: Stable operation, quick relocation, low OPEX, and safety-compliant walkways with full process flexibility.

TECHNICAL DATA

Series
Units
PRFM SM 200
PRFMC 220
PRFMC 250
PRFM SM 250
Model
SM200
AVC220
AVC250
SM250
Feed Opening
mm
(inch)
95
(3.7)
220
(8.7)
230
(9.0)
95
(3.7)
CSS Range
mm
(inch)
14 - 28
(0.6 - 1.1)
24 - 35
(0.9 - 1.4)
26 - 35
(1.0 - 1.4)
14 - 30
(0.5 - 1.2)
*Capacity
TPH
120-185
140-320
160–340
150-240
Dual Slope Vibrating Screen - 1860 - 4D
Units
PRFM SM 200
PRFMC 220
PRFMC 250
PRFM SM 250
Size (W x L)
mm
(inch)
1850 x 6000
(72.8 x 236.2)
1850 x 6000
(72.8 x 236.2)
1850 x 6000
(72.8 x 236.2)
1850 x 6000
(72.8 x 236.2)
Number of Decks
4
4
4
4
Electrical
Units
PRFM SM 200
PRFMC 220
PRFMC 250
PRFM SM 250
Motor Power
kW
(hp)
160
(215)
160
(215)
187
(250)
187
(250)
Total Power
kW
(hp)
200
(268)
200
(268)
220
(295)
220
(295)

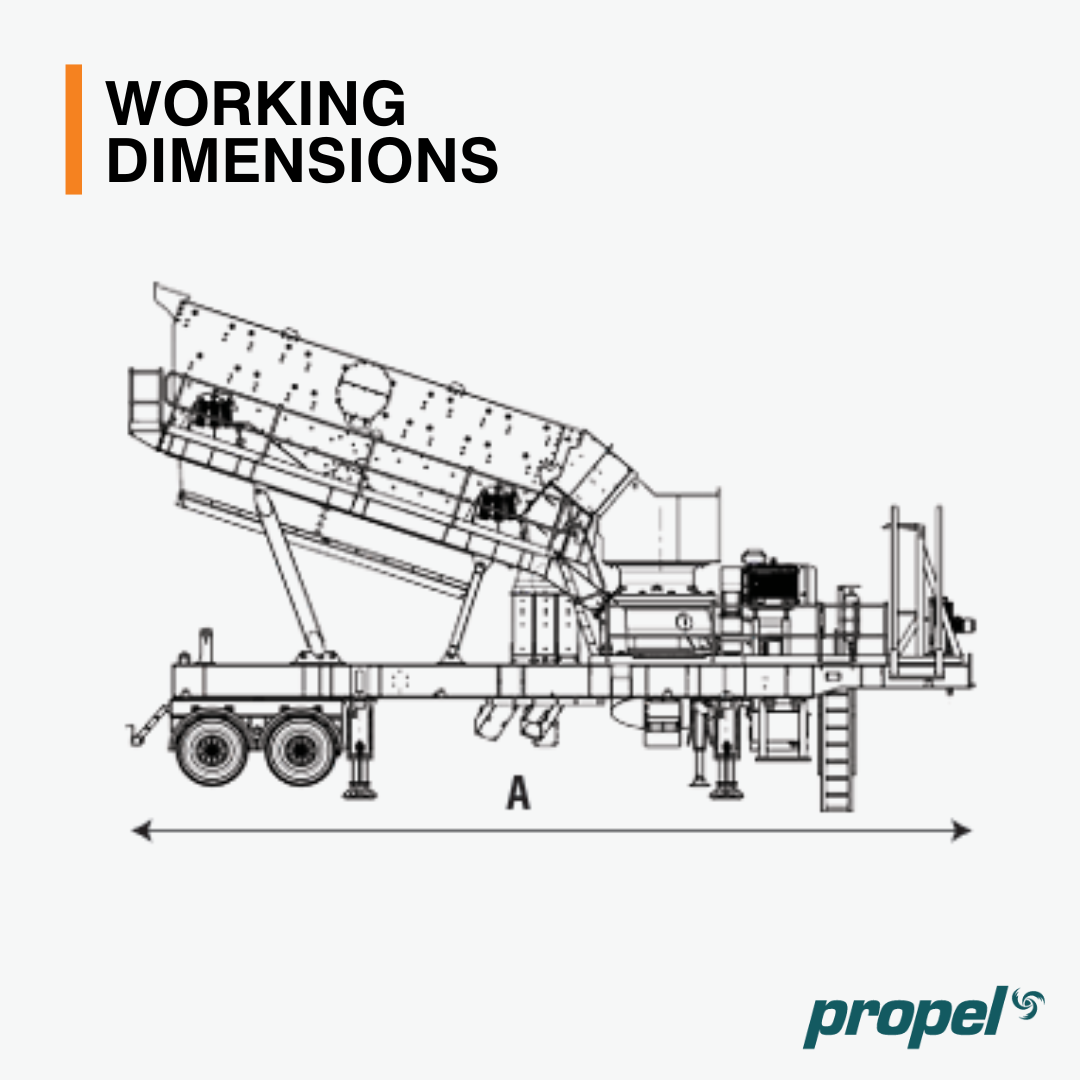

Dimensions
Units
PRFM SM 200
PRFMC 220
PRFMC 250
PRFM SM 250

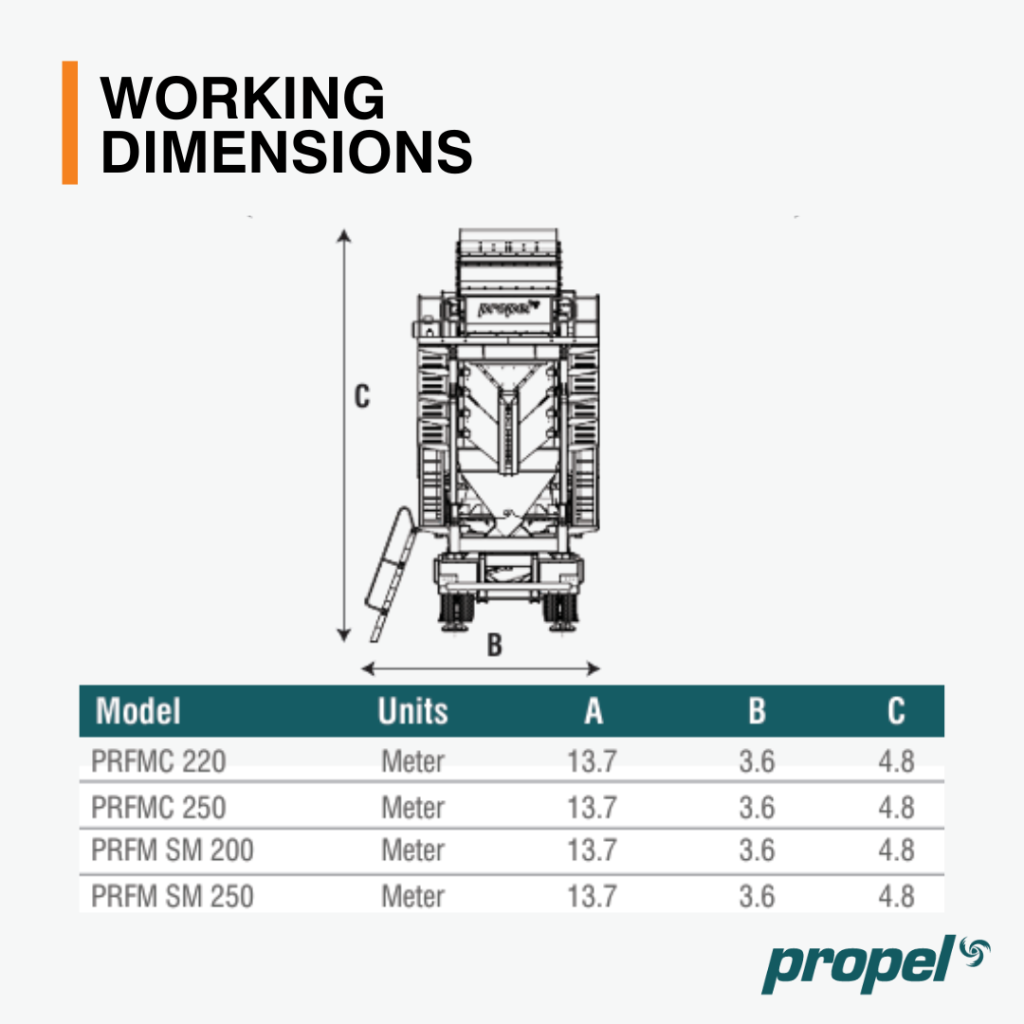

Transport ( L x W x H )
Meter
(Feet)
13.7 x 3.6 x 4.8
(45'1" x 11' 9" x 15' 9" )
13.7 x 3.6 x 4.8
(45'1" x 11' 9" x 15' 9" )
13.7 x 3.6 x 4.8
(45'1" x 11' 9" x 15' 9" )
13.7 x 3.6 x 4.8
(45'1" x 11' 9" x 15' 9" )
**Weight
kg (lbs)
42500 (93697)
42500 (93697)
42500 (93697)
42500 (93697)
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
