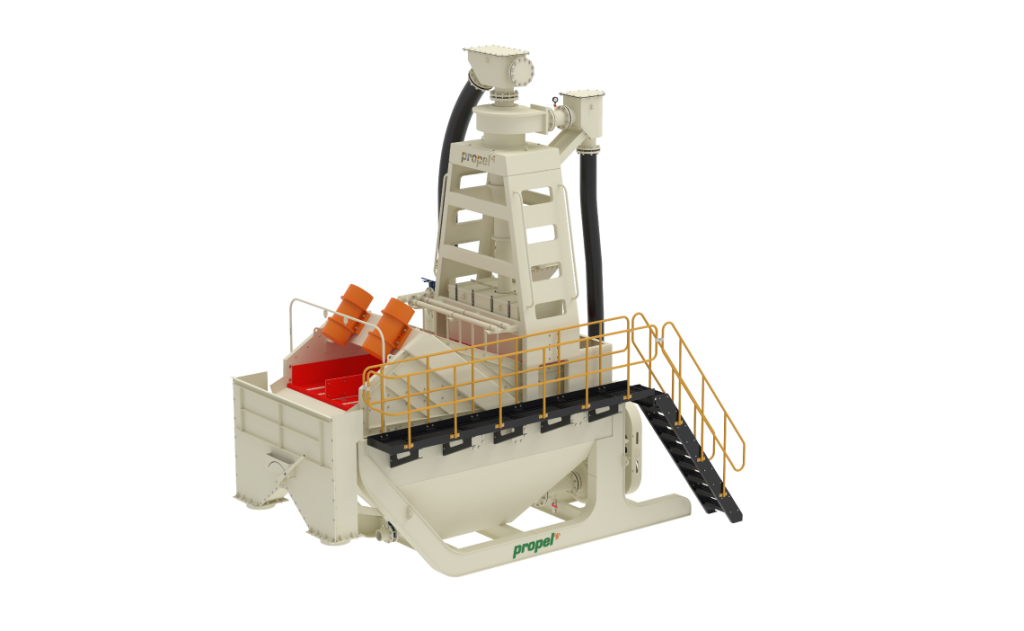

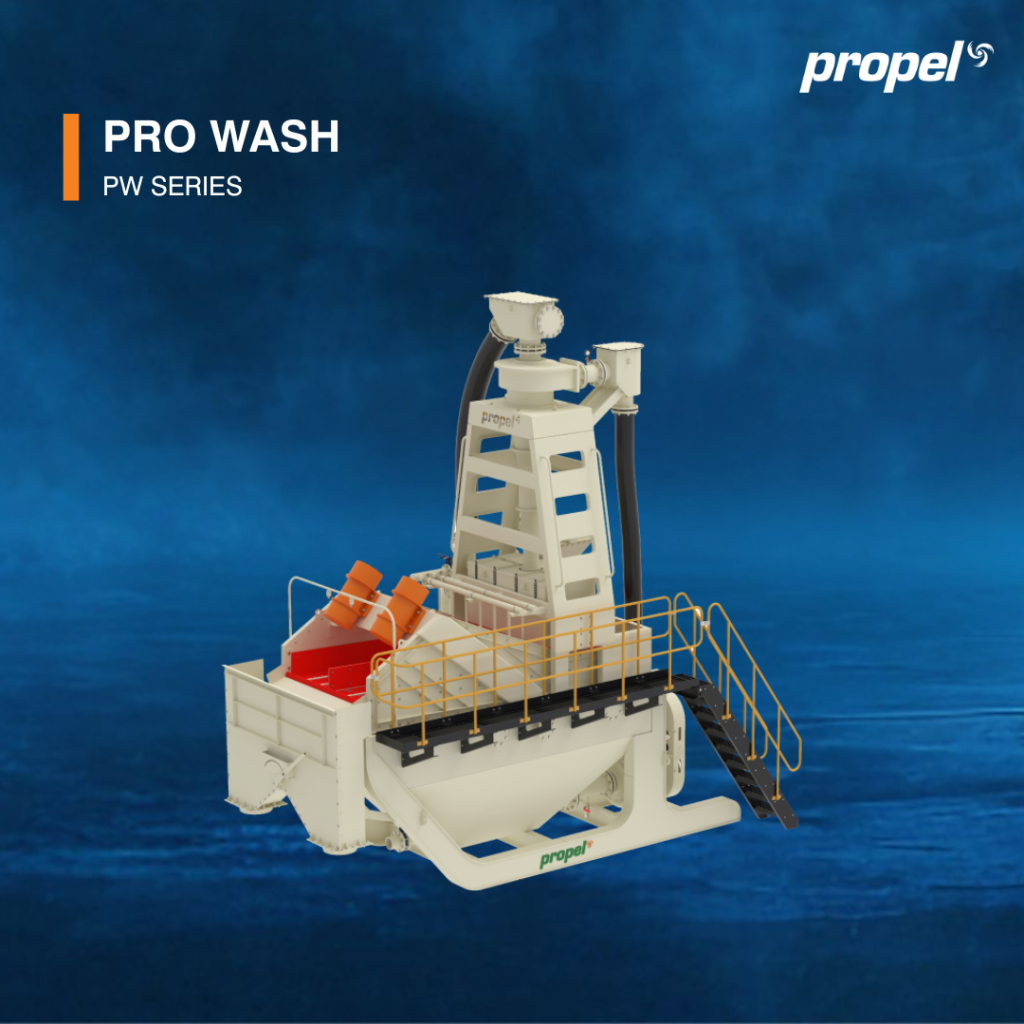

Pro Wash

PW Series

The Propel Pro Wash (PW) Series is engineered for maximum washing efficiency, delivering precise separation of silt and clay from final sand products like M-sand and P-sand. It is ideal for producing high-quality, specialised sands.

Highlights and information

Highlights of Washing System: Pro Wash PW Series

Protected Feed Box: Rubber/PU lining reduces impact on screen deck and extends lifespan.

High G-Force: Improves dewatering efficiency and water recovery.

Custom Cyclones: Optional cyclone configurations enhance material recovery.

No Secondary Pump Needed: High discharge point eliminates slurry pressure without extra pumps.

Optimised Flow System: Anti-turbulence inlets and weir discharge improve separation.

Modular Construction: Flexible setup for sand and ore applications.

Real-Time Tracking: Enables proactive issue detection and reduces downtime.

TECHNICAL DATA

Series
Units
PW 100 V2
PW 150 V2
PW 200 V2
PW 250 V2
DP 250
*Capacity
TPH
60 - 80
90 - 120
120 - 160
150 - 250
200-250
Hydro Cyclone Size
mm
(inch)
400
(15.7)
400
(15.7)
500
(19.7)
500
(19.7)
500
(19.7)
Slurry Pump Size
(Suction x Delivery)
mm
(inch)
152.4 x 101.6
(6.0 x 4.0)
203.2 x 152.4
(8.0 x6.0)
203.2 x 152.4
(8.0 x 6.0)
203.2 x 152.4
(8.0 x 6.0)
203.2 x 152.4
(8.0 x 6.0)
Slurry Pump Capacity
m3/ hr
120
200
250
270
270
Slurry Pump Power
kw
(hp)
15
(20)
30
(40)
37
(50)
45
(60)
45
(60)
Weight
kg (lbs)
8400
(18519)
8800
(19401)
11800
(26015)
14000
(30865)
30300
(66800)
DEWATERING SCREEN
Series
Units
PDW 100
PDW 150
PDW 200
PDW 250
DP 250
Screen Area (WxL)
mm
1800 x 2800
1800 x 2800
1800 x 4000
2400 x 3850
2400 x 3850
*Capacity
TPH
60 - 80
90 - 120
120 - 160
150 - 250
150 - 250
Operating Angle
deg
0° to 2°
0° to 2°
0° to 2°
0° to 2°
0° to 2°
Motor Power
kW
(hp)
2 x 2.88
(2 x 4)
2 x 2.88
(2 x 4)
2 x 6.2
(2 x 8)
2 x 11
(2 x 15)
2 x 11
(2 x 15)
**Weight
kg (lbs)
2400
(5291)
2400
(5291)
3800
(8378)
4900
(10803)
4900
(10803)
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
