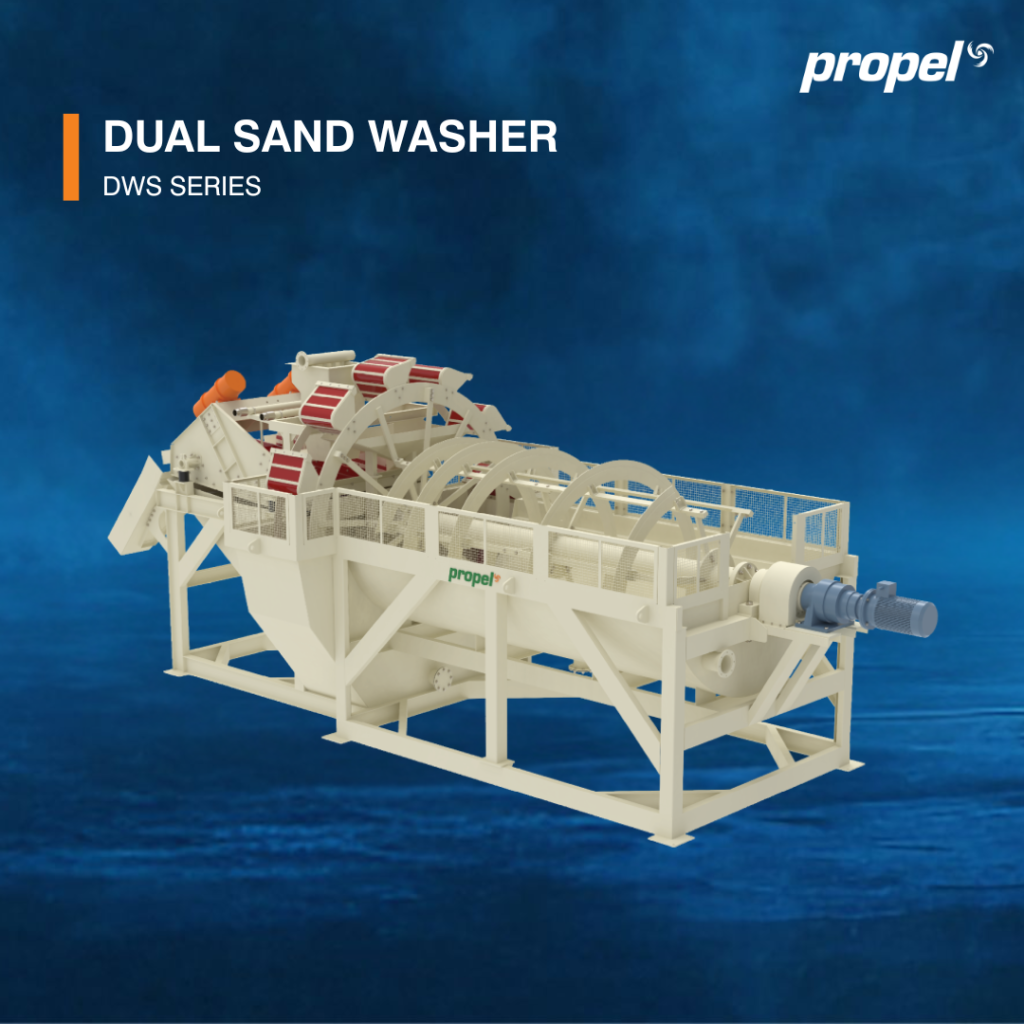

Duel Sand Washer

DSW 100

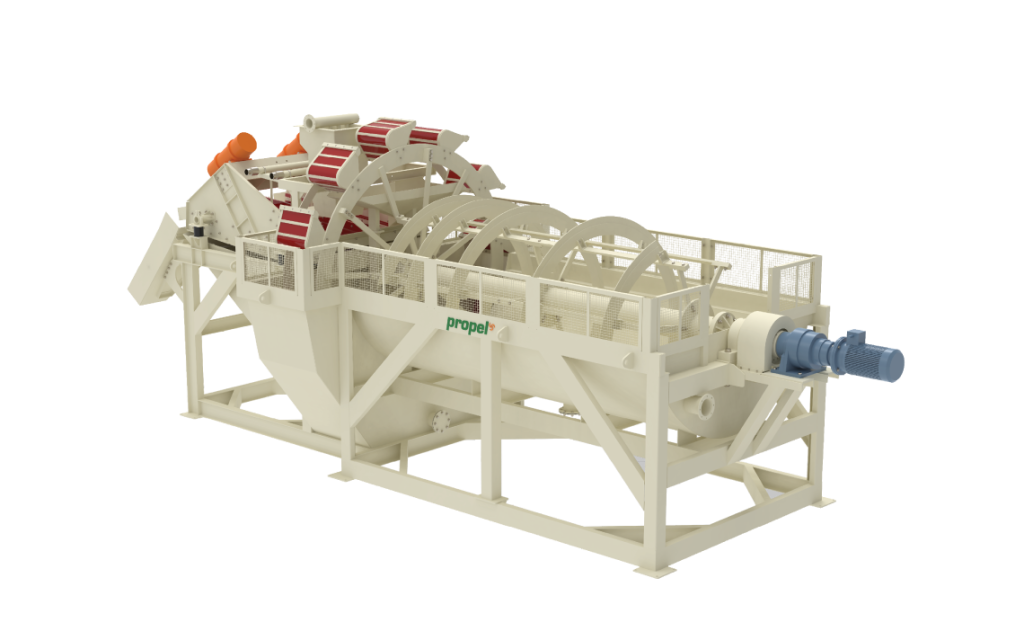

The Propel Dual Sand Washer (DSW) features a wheel-bucket design, ideal for washing and classifying M-sand and P-sand, with the added benefits of low energy use and minimal maintenance.

Highlights and information

Highlights of Washing System: DSW 100

Planetary Gear Reducer: Advanced gear system ensures efficient, low-maintenance operation.

Durable Spiral Wheels: Fitted with sailhard liners for extended wear life.

Corrosion Protection: Water trough coated with anti-corrosive material.

Controlled Fines Recovery: VFD-regulated bucket and spiral speed manage fines percentage.

Dewatering Screens: High-frequency screens with modular polyurethane mats.

Real-Time Tracking: Enables proactive maintenance and minimises downtime.

TECHNICAL DATA

Series
Units
DSW 100
*Capacity
TPH
60 to 80
Wheel diameter
m
3.4
Number of buckets
No’s
12
Screw Diameter
mm (inch)
1800
(71.0)
Water Tank Capacity
Ltrs
8000
Motor Power
kW (hp)
9.3 (12.6)
Weight
kg (lbs)
11000 (24251)
DEWATERING SCREEN
Series
Units
DSDW 100
Screen Area (WxL)
mm (Inch)
1500 x 2500
(59.1 x 98.4)
*Capacity
TPH
60 - 80
Operating Angle
deg
5°
Motor Power
kW (hp)
2 x 2.2 (2 x 3)
Weight
kg (lbs)
1300 (2866)
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
