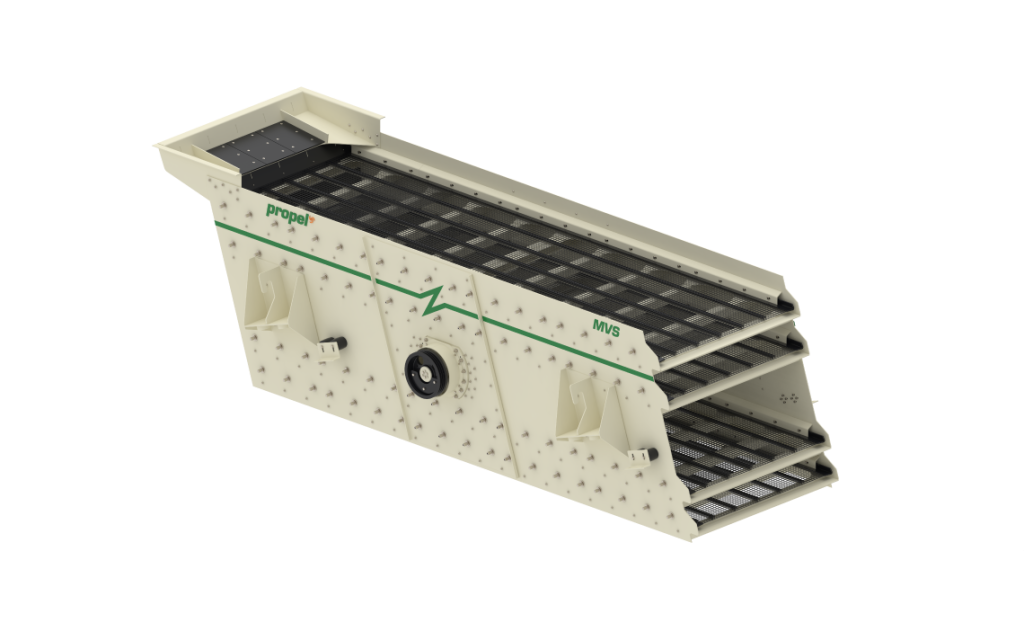

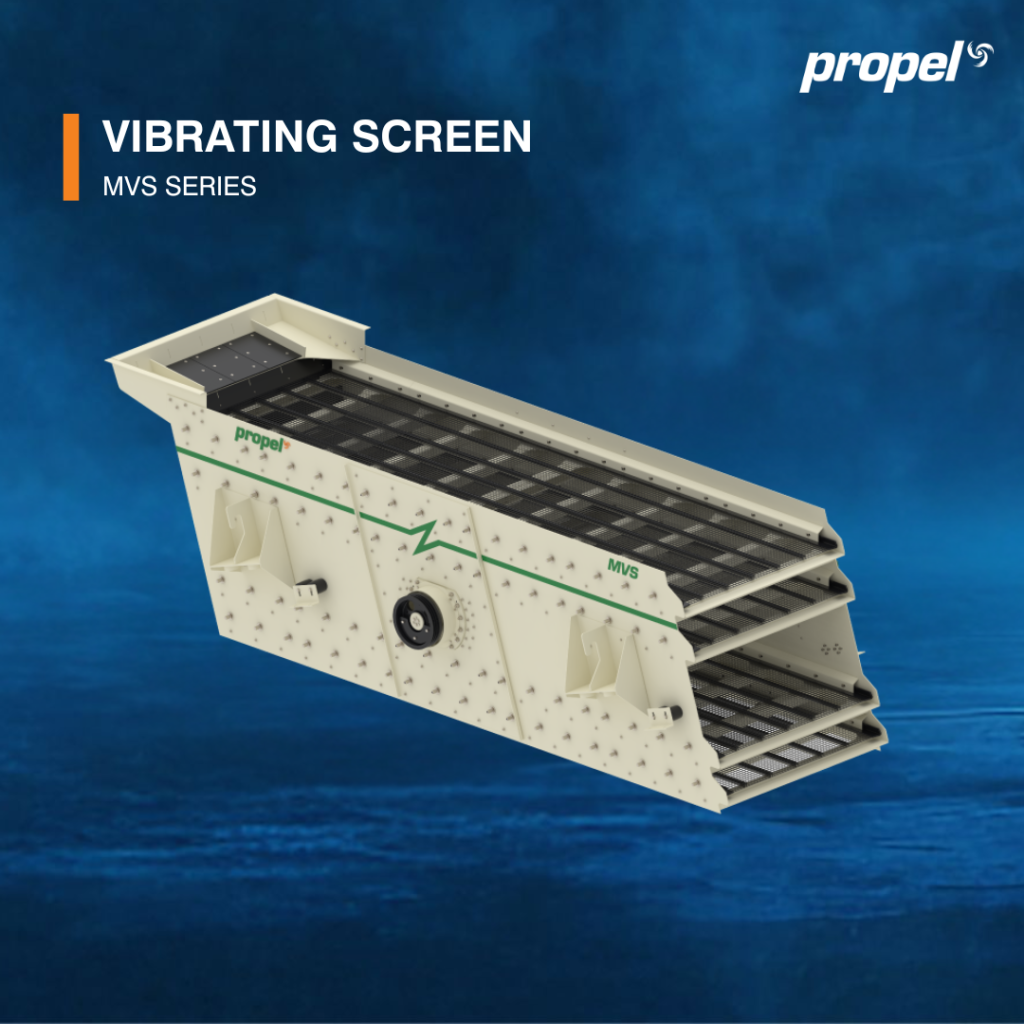

Vibrating Screen
MVS Series
Propel MVS Screens are highly versatile, suitable for primary, secondary, and tertiary screening applications. With a standard slope angle of 18°, they can be customised for specific needs and are adaptable for wet screening when equipped with spray pipes.
Highlights and information
Highlights of Static Equipment: Cone Crusher (QM Series)
TECHNICAL DATA
Series | Units | MVS 1540 | MVS 1845 | Dual Slope 1860 | MVS 2060 | MVS 2561 | MVS 1850 |
Screen Size (W x L) | mm (inch) | 1500 x 4000 (59.1 x 157.5) | 1800 x 4500 (71.0 x 177.2) | 1850 x 6000 (72.9 x 236.2) | 2000 x 6000 (78.7 x 236.2) | 2500 x 6100 (98.4 x 240.2) | 1800 x 5000 (70.9 x 196.9) |
Screening Area sq. | m | 6.0 | 8.1 | 11.1 | 12.0 | 15.1 | 8.91 |
*Capacity | TPH | Up to 300 | Up to 400 | Up to 500 | Up to 650 | Up to 800 | Up to 200 |
Number of Decks | 2 / 3 / 4 | 2 / 3 / 4 | 4 | 2 / 3 / 4 | 3 / 4 | 1 | |
Mounting Type (optional) | Skid | Skid | Skid | Skid | Skid | Skid | |
Screen Position | Inclined | Inclined | Inclined | Inclined | Inclined | Inclined | |
Type of Motion | Circular | Circular | Elliptical | Circular | Circular | Circular | |
Motor Power | kW (hp) | 15 (20) | 15 (20) | 15 (20) | 22 (30) | 30 (40) | 2X5 (6.7) |
Weight | kg (lbs) | 3500 / 4300 / 5100 (7716/ 9479/11244) | 4000/4800/5400 (8819/10582/11905) | 7600 (16755) | 6000 / 7500 / 8700 (13228/16535/ 19180) | 12500 / 14500 (27558/31967) | 4000 (8819) |
Note: All the above technical details may vary at any time during the engineering process & design development
