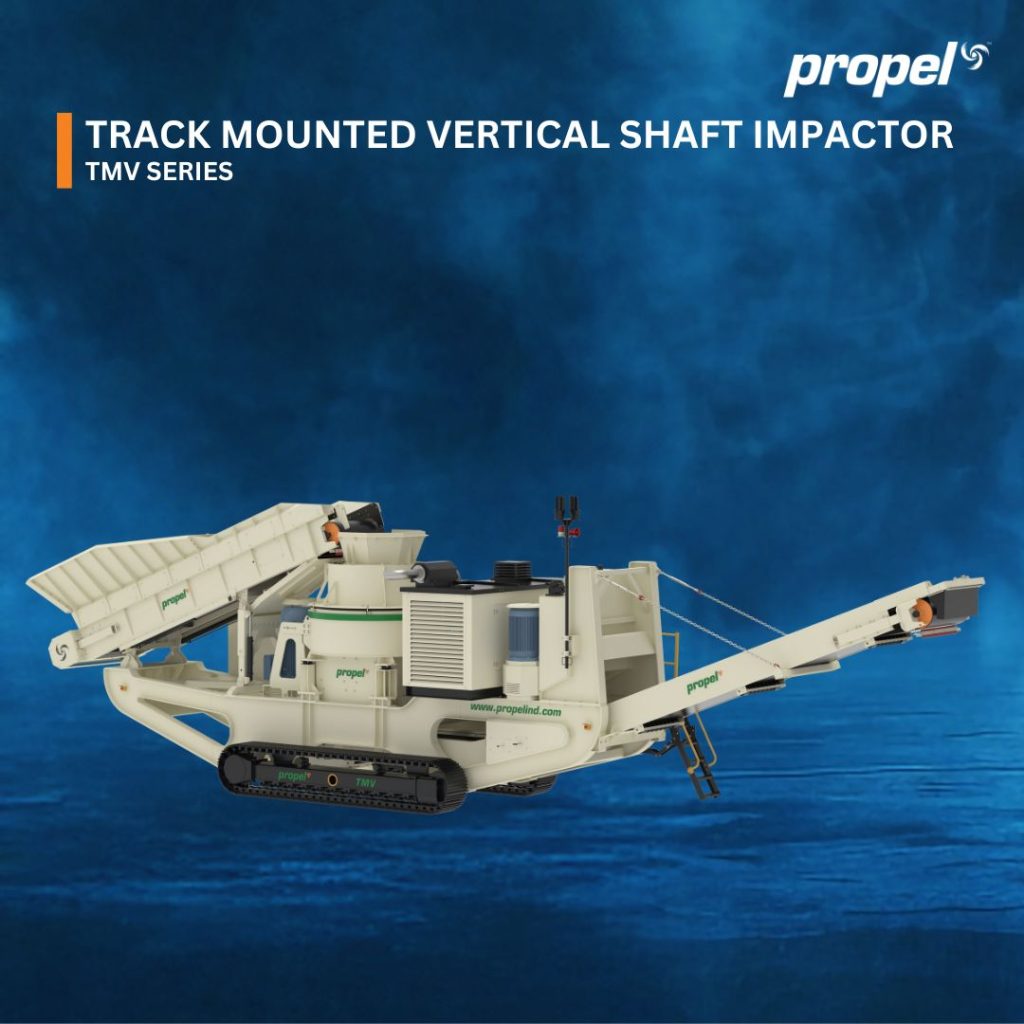

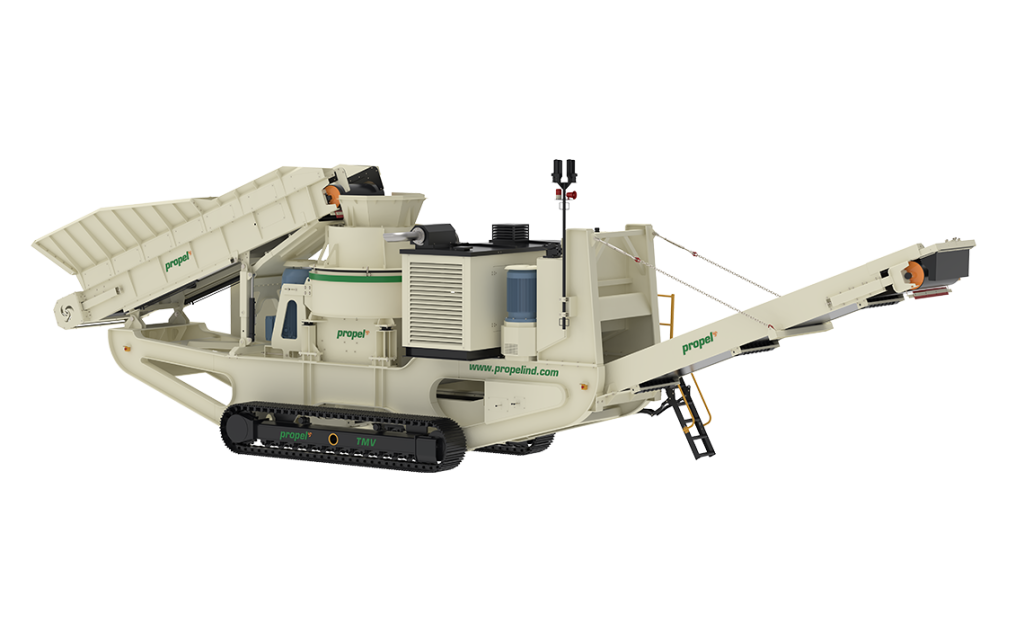

Track Mounted Vertical Shaft Impactor

TMV Series

Known for its durability, efficiency, and reliable performance, the Track Mounted VSI delivers proven cost savings across applications.

Highlights of Track Mounted Vertical Shaft Impactor

Feeding Control System: VFD and metal detector enable safe, consistent feed for uninterrupted operation.

Vertical Shaft Impactor: Offers flexible configurations (RoR, RoA, 3–5 port rotors) for varied output and quality.

Light Mast: Inbuilt LED lighting with foldable mounts ensures visibility during night operations.

Dust Suppression System: Reduces dust at discharge to support a cleaner and safer work environment.

Dual Power Input: Easily switch between diesel and electric for efficient, flexible power use.

Power Source with Acoustic Canopy: Fuel-efficient, well-insulated engine with alternator for quiet, durable performance.

Track: 500mm wide track for stability and reliable mobility on tough terrain.

Motorised Pulley: High-efficiency, low-maintenance design boosts uptime and productivity.

Wireless Tracking Remote: Full-function remote ensures safe and easy control on the move.

IoT Enabled: Real-time tracking and diagnostics reduce downtime and boost efficiency.

More Features: Dual-speed track, safety guards, walkways, remote control, quick setup, and low-noise operation with overload protection.

TECHNICAL DATA

Series	Units	TMV 200	TMV 300
Feed Size	mm (inch)	58 (2.3)	66 (2.6)
Rotor Speed	m (sec)	45-70	45-75
*Capacity	TPH	180 - 320	250 - 470
Hopper / Feeder	Units	TMV 200	TMV 300
Hopper Capacity	m3	6	7
Feed Belt Width (mm)	mm	1000	1200
Main Conveyor	Units	TMV 200	TMV 300
Belt Width	mm	1000	1200
Discharge Height	mm	3600	3400
Stock Pile Capacity	m3	69.4 @ 40°	58.4 @ 40°
Under Carriage	Units	TMV 200	TMV 300
Shoe Width	mm	500	500
Hydraulic Tank Capacity	Ltrs	390	390
Power Unit	Units	TMV 200	TMV 300
Engine		Scania DC13 Stage III Engine With Alternator (or) Volvo Penta TAD 1355 GE Stage III Engine With Alternator	Scania DC16 Stage III Engine With Alternator
Diesel Tank Capacity	Ltrs	900	1000
Dimensions	Units	TMV 200	TMV 300
Transport ( L x W x H )	Meter (Feet)	17.5 x 3.4 x 4 (57'4" x 11'4" x 13'8")	17.5 x 3.4 x 4.1 (57'4"x 11' 4" x 13'8")

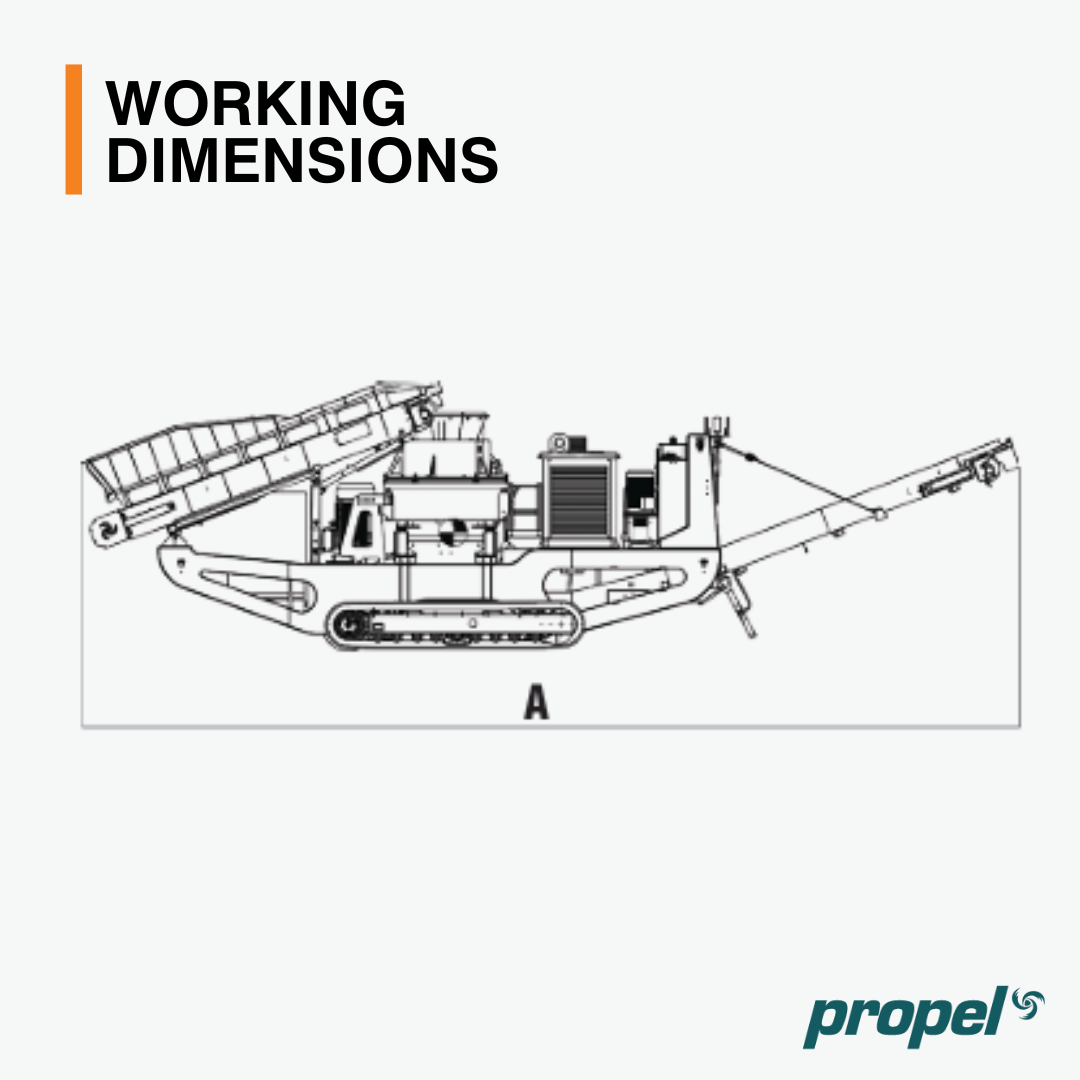

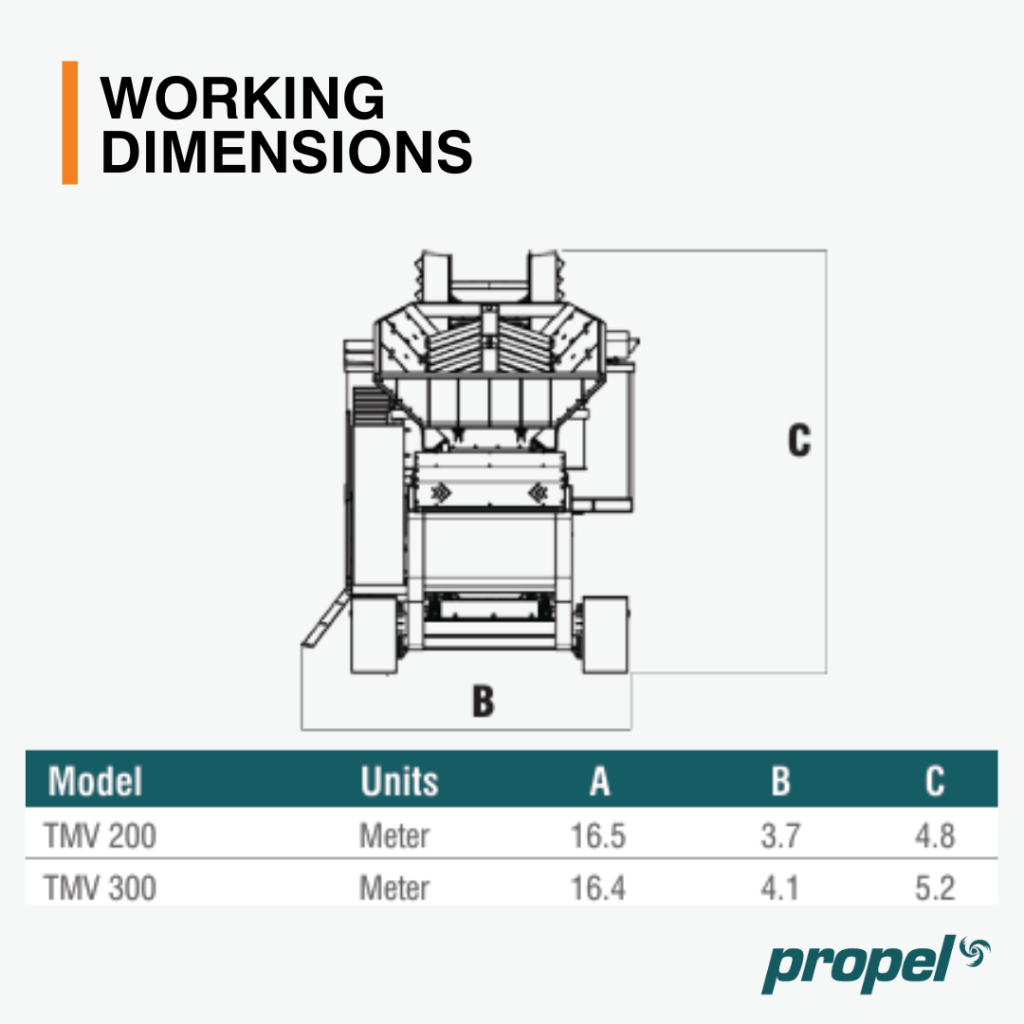

Working ( L x W x H )	Meter (Feet)	16.5 x 3.7 x 4.8 (53'9" x 12'4" x 15' 10")	16.4 x 4.1 x 5.2 (53'9" x 13' 5" x 17' 4")
**Weight	kg (lbs)	36000 (79366)	46000 (101412)

*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
