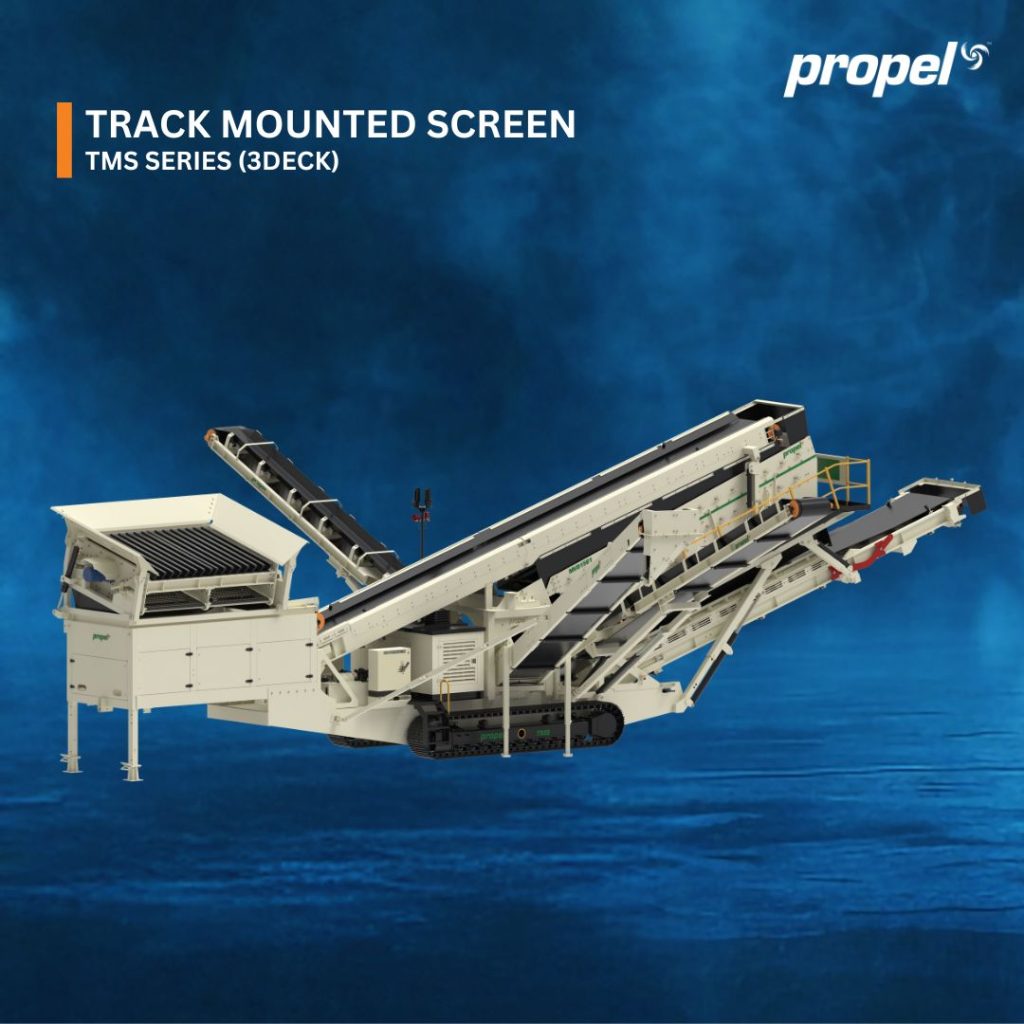

Track Mounted Screen

TMS Series (3 Deck)

Engineered with a robust design and flexible stroke adjustment, Propel electrical mobile Screen 3 Deck deliver reliable performance across a wide range of applications. Their versatility makes them ideal for efficient screening in mining, recycling, aggregates, and more, ensuring consistent output and easy adaptability on site.

Highlights and information

Highlights of Track Mounted Screen TMS Series (3 Deck)

Hopper & Grid: 9m³ capacity with adjustable grid aperture for efficient feed handling.

Vibrating Screen: Wide screening area with quick mesh setup and protected components.

Dust Suppression System: Reduces dust for a safer, cleaner working environment.

Motorised Pulley: Ensures high uptime, low maintenance, and energy efficiency.

Dual Power Input: Easy switch between diesel and electric for flexible, cost-effective use.

Track: 500mm wide track for stability and smooth mobility.

Power Source with Acoustic Canopy: Fuel-efficient, insulated engine with built-in alternator for quiet operation.

Wireless Tracking Remote: Full wireless control for safe and convenient machine movement.

IoT Enabled: Real-time monitoring for proactive maintenance and reduced downtime.

Additional Features: Dual-speed track, tipping grid (optional), high screening capacity, remote control, and robust chassis with full catwalk access.

TECHNICAL DATA

Series
Units
TMS 1561
Top Deck Size
mm (inch)
6100 x 1550 (241 x 61)
Bottom Deck Size
mm (inch)
5550 x 1550 (218.5 x 61)
Number of decks
3
*Capacity
TPH
Up to 500
Hopper / Feeder
Units
TMS 1561
Hopper Capacity
m3
9
Over size Side Conveyor
Units
TMS 1561
Stock Pile Capacity
m3
210@40°
Mid size Side Conveyor
Units
TMS 1561
Stock Pile Capacity
m3
195@40°
Bottom Deck Side Conveyor
Units
TMS 1561
Stock Pile Capacity
m3
195@40°
Under size Product Conveyor
Units
TMS 1561
Stock Pile Capacity
m3
75-175@40°
Under Carriage
Units
TMS 1561
Shoe Width
mm
500
Hydraulic Tank Capacity
Ltrs
400
Power Unit
Units
TMS 1561
Engine
CAT C4.4 Stage V Engine With Alternator
Diesel Tank Capacity
Ltrs
350
Dimensions
Units
TMS 1561
Transport ( L x W x H )
Meter (Feet)
18.8 x 3.3x 3.7 (61' 8" x 10' 9" x 12' 1")

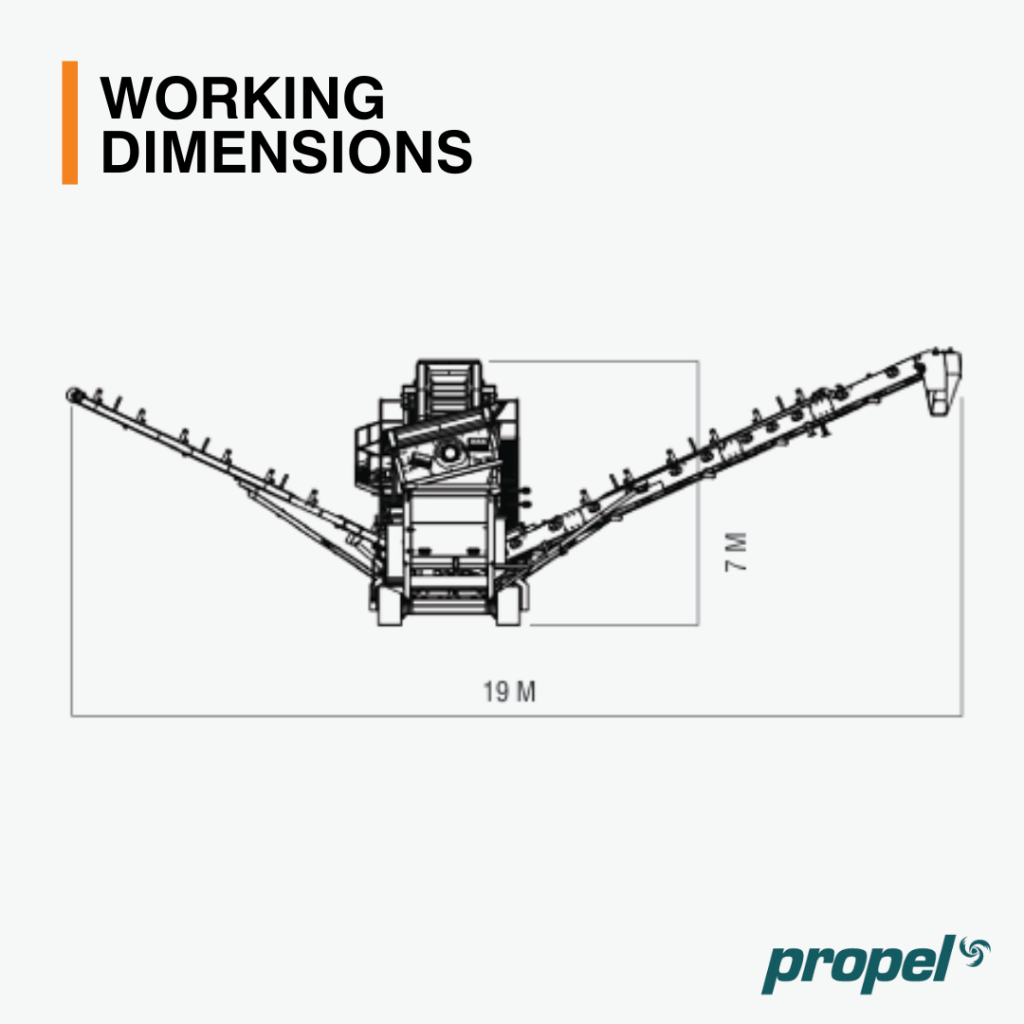

Working ( L x W x H )
Meter (Feet)
21 x 19 x 7 (69' x 62' 4 " x 23'1")
**Weight (Tipping grid)
kg (lbs)
43000 (94799)
**Weight (Vibrating grid)
kg (lbs)
46000 (101413)
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
