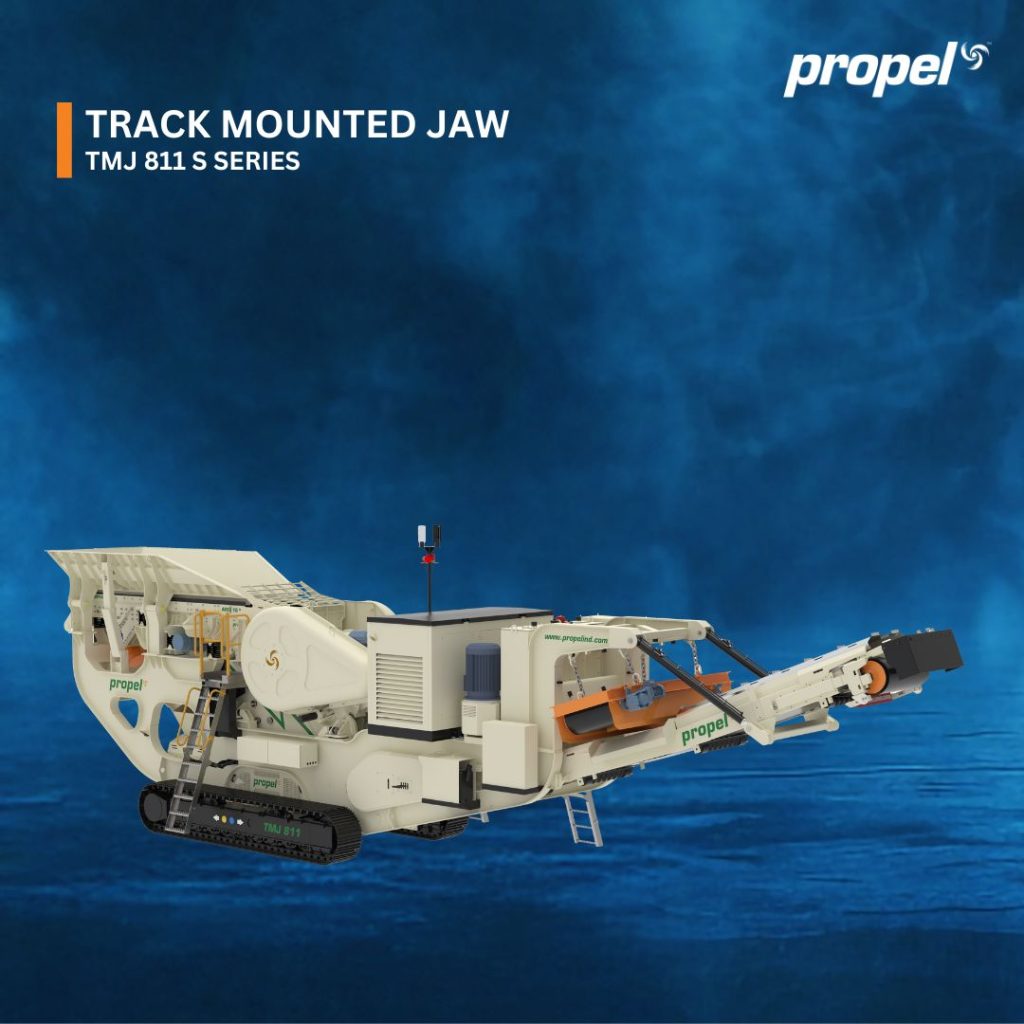

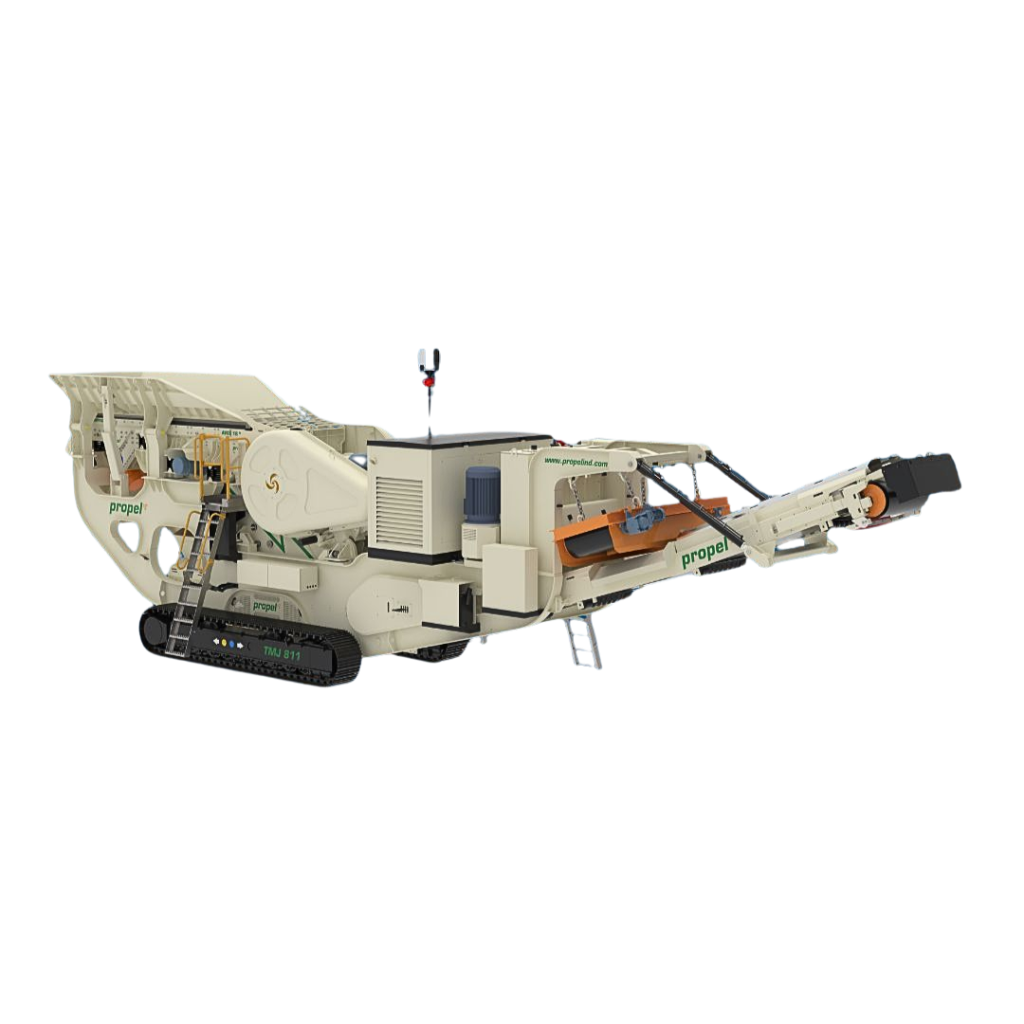

Track Mounted Jaw
TMJ Series
The TMJ Series single toggle jaw crushers feature an elevated feed opening that significantly reduces the risk of bridging, resulting in improved production efficiency. An optimised jaw nip angle minimises laminar-shaped output, promotes uniform manganese wear, and enhances overall production.

Highlights and information
Highlights of Track Mounted Jaw



TECHNICAL DATA
SERIES | Units | TMJ 811 S |
Opening Size (W x L) | mm (inch) | 1064 X 750 (41.9 x 29.5) |
CSS Rangey | mm (inch) | 75 to 200 (3.0 to 8.0) |
*Capacity | TPH | 150 - 400 |
Hopper / Feeder | Units | TMJ 811 S |
Hopper Capacity | m3 | 6 |
Feeder AVF 1124 | Units | TMJ 811 S |
Size | mm (inch) | 1150 x 2400 (45.2 x 94.4) |
Pre-Screen AVGS 1220 | Units | TMJ 811 S |
Size | mm (inch) | 1250x 2000 ( 47.2X78.7) |
Main Conveyor | Units | TMJ 811 S |
Belt Width | mm | 1000 |
Discharge Height | mm | 3600 |
Stock Pile Capacity | m3 | 70 @ 40° |
Bypass Conveyor | Units | TMJ 811 S |
Belt Width | mm | 650 |
Discharge Height | mm | 2700 |
Stock Pile Capacity | m3 | 29.3 @ 40° |
Under Carriage | Units | TMJ 811 S |
Shoe Width | mm | 500 |
Hydraulic Tank Capacity | Ltrs | 450 |
Under Carriage | Units | TMJ 811 S |
Engine | Caterpillar C7.1 Stage V Engine With Alternator | |
Engine Power | kW(hp) | 195 kW (260 HP) |
Diesel Tank Capacity | Ltrs | 500 |
Under Carriage | Units | TMJ 811 S |
Transport ( L x W x H ) | Meter (Feet) | 15.7 x 3 x3.8 (51' 9" x 9' 10" x 12' 7") |

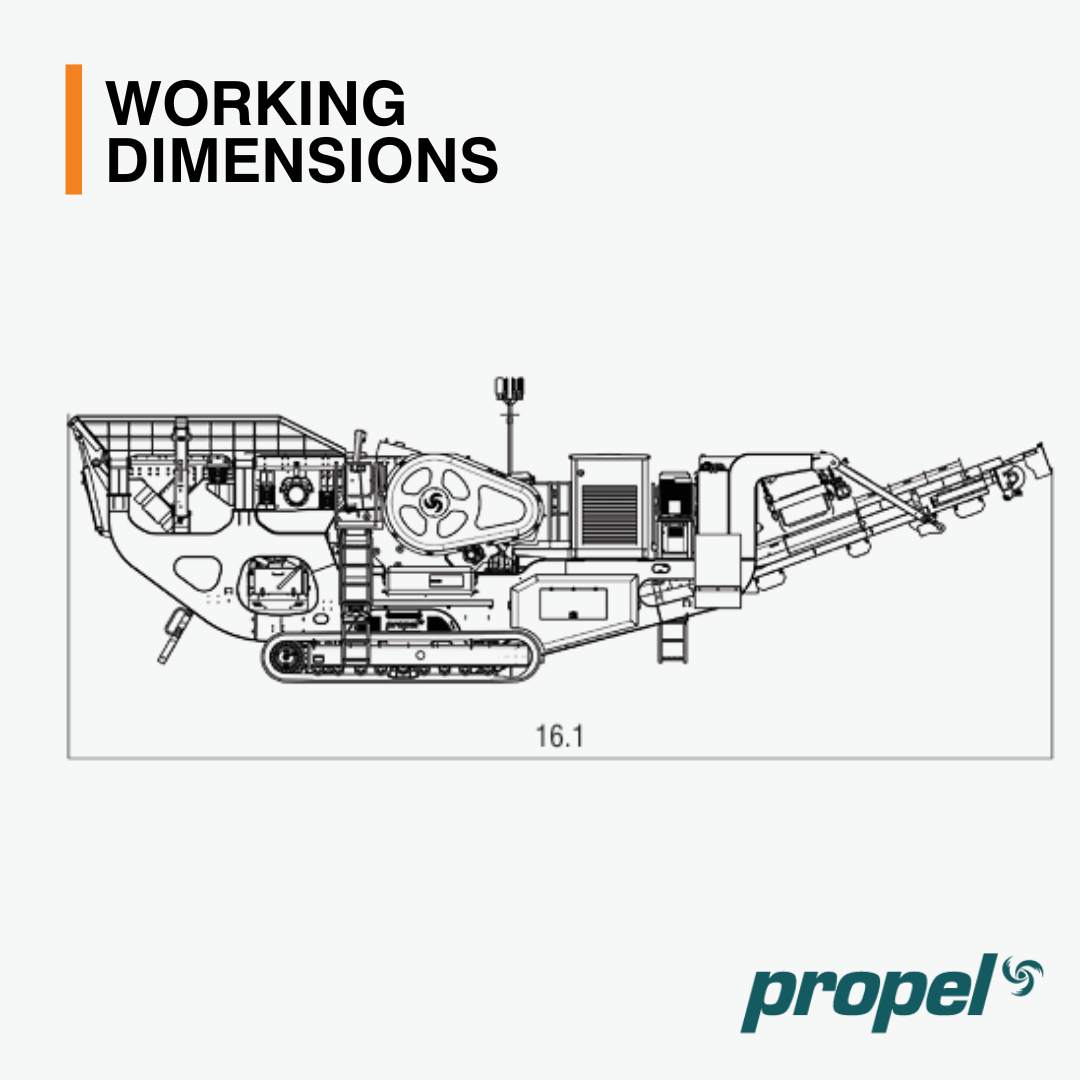

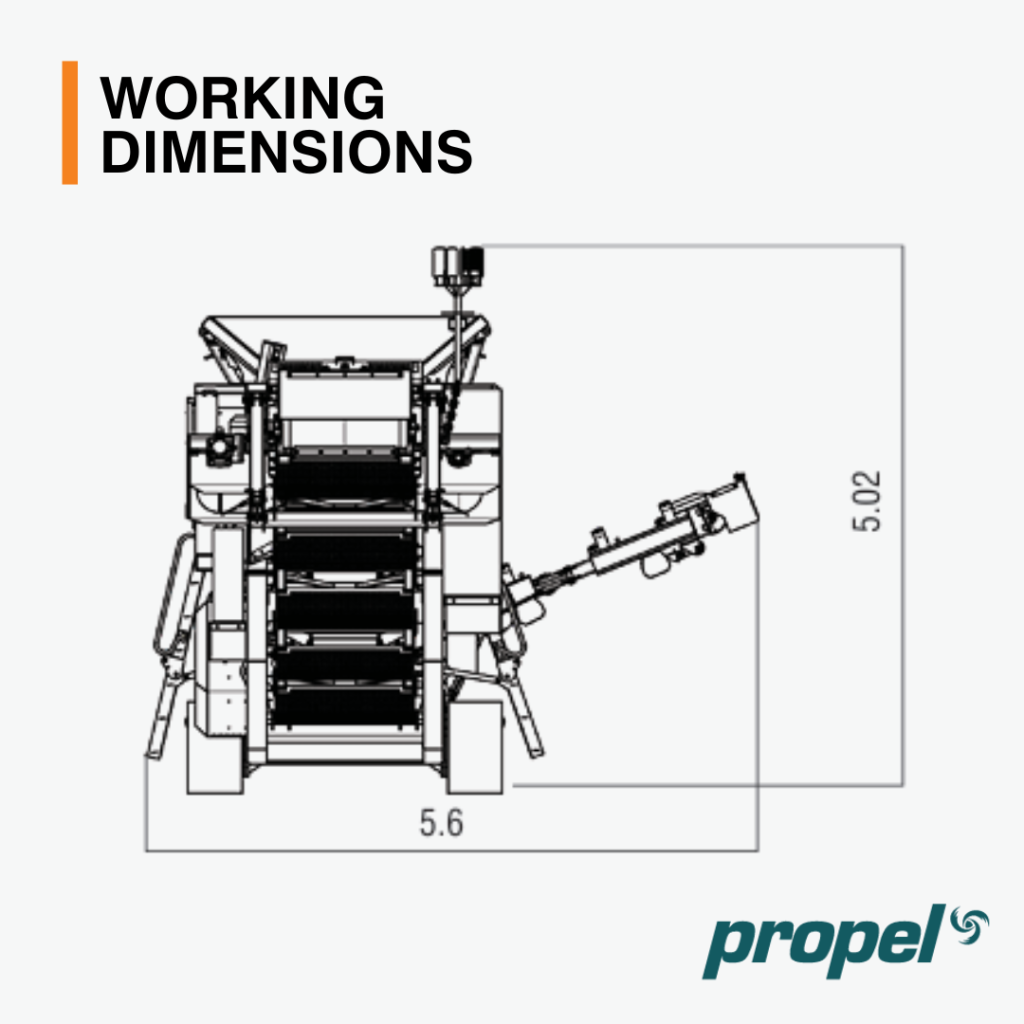

Working ( L x W x H ) | Meter (Feet) | 16.1 x 5.6 x 5 ( 53' 1" x 18'6" x 16' 5") |
**Weight | kg (lbs) | 56500 (124561) |
Note: All the above technical details may vary at any time during the engineering process & design development
