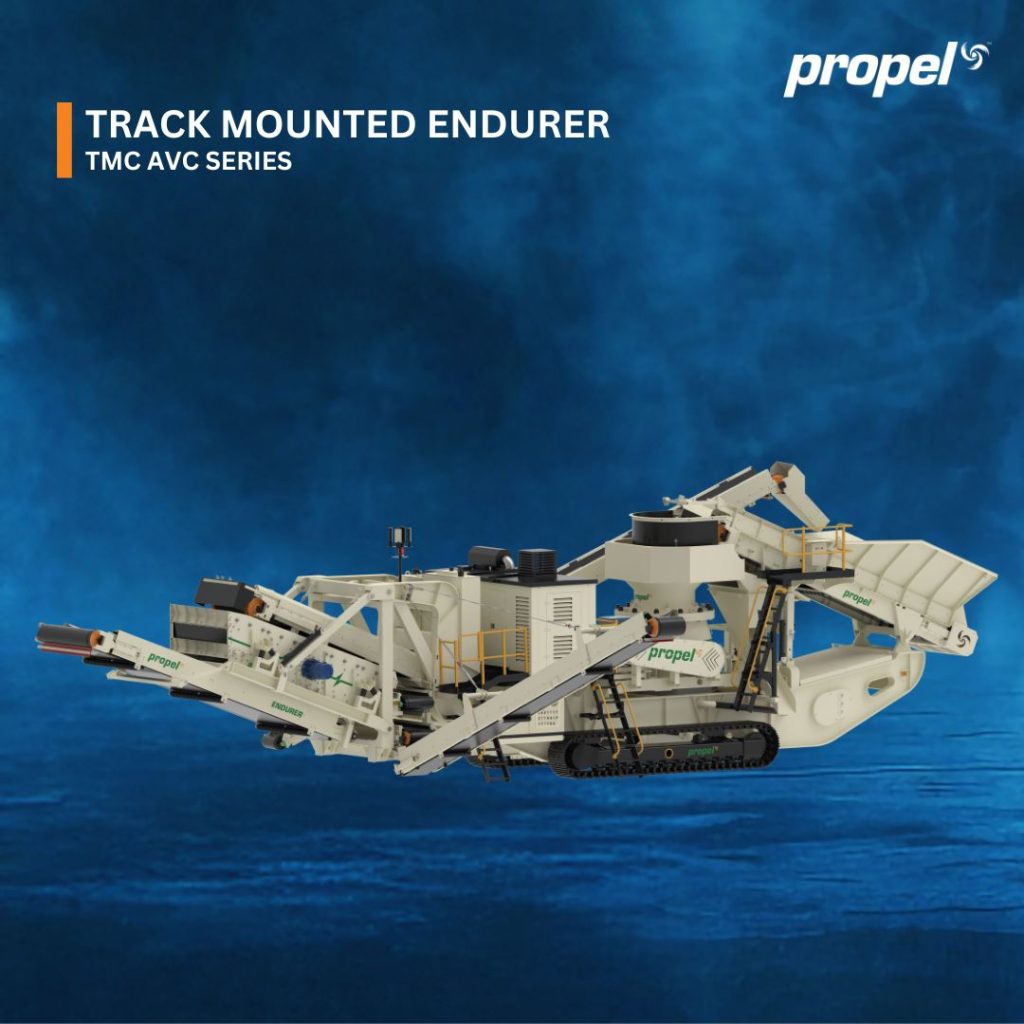

Track Mounted Endurer

AVC Series

The Propel AVC Series combines optimised crusher speed, throw, and cavity design to deliver exceptional capacity and superior product quality. Built for durability, it ensures smooth and reliable performance in heavy-duty, continuous operations.

Highlights and information

Highlights of Track Mounted Endurer QM Series

Dust Suppression System: Controls dust at discharge for a cleaner, safer environment.

Light Mast: Built-in LED lighting improves visibility with foldable mounts for transport.

Cone Crusher [AVC]: Delivers high-quality output with optional automatic CSS control.

Feeding Control System: VFD and metal detector ensure smooth, safe, and efficient feed flow.

Motorised Pulley: Low-maintenance, high-efficiency design ensures reliable uptime.

On-board Screen: Compact, maintenance-free screen designed for QM-250 output.

Track: 500mm wide heavy-duty track for stable and smooth movement.

Power Source with Acoustic Canopy: Fuel-efficient, insulated engine with built-in alternator for quiet operation.

Wireless Tracking Remote: Full wireless control for safe and convenient machine movement.

IoT Enabled: Real-time monitoring for proactive maintenance and reduced downtime.

Additional Features: Dual-speed track, dual power mode, safety guards, remote control, sensor-based automation, quick setup, and low-noise performance.

TECHNICAL DATA

Series
Units
TMC 220 S
TMC 250 S
TMC SM 200 S
TMC SM 250 S
Feed Opening
mm (inch)
220 (8.7)
230 (9.0)
95 (3.7)
95 (3.7)
CSS Range
mm (inch)
24-35 (0.9-1.4)
26-35 (1-1.4)
14-28 (0.6-1.1)
14-30 (0.6-1.2)
*Capacity
TPH
140-320
160-340
120-185
150-240
Hopper / Feeder
Units
TMC 220 S
TMC 250 S
TMC SM 200 S
TMC SM 250 S
Hopper Capacity
m3
6
6
6
6
Feed Belt Width ( mm )
mm
1000
1000
1000
1000
Main Conveyor
Units
TMC 220 S
TMC 250 S
TMC SM 200 S
TMC SM 250 S
Belt Width
mm
1000
1000
1000
1000
Top / Bottom Deck Transfer Conveyor
Units
TMC 220 S
TMC 250 S
TMC SM 200 S
TMC SM 250 S
Belt Width
mm
500
500
500
500
Stock pile / Recycling Conveyor
Units
TMC 220 S
TMC 250 S
TMC SM 200 S
TMC SM 250 S
Belt Width
mm
500
500
500
500
Fines Conveyor
Units
TMC 220 S
TMC 250 S
TMC SM 200 S
TMC SM 250 S
Belt Width
mm
1400
1400
1400
1400
On Board Screen
Units
TMC 220 S
TMC 250 S
TMC SM 200 S
TMC SM 250 S
Deck Size
mm (inch)
1800 x 3700 (70.9 x 145.7)
1800 x 3700 (70.9 x 145.7)
1800 x 3700 (70.9 x 145.7)
1800 x 3700 (70.9 x 145.7)
Number of Decks
mm
2
2
2
2
Under Carriage
Units
TMC 220 S
TMC 250 S
TMC SM 200 S
TMC SM 250 S
Shoe Width
mm
500
500
500
500
Hydraulic Tank Capacity
Ltrs
435
435
435
435
Power Unit
Units
TMC 220 S
TMC 250 S
TMC SM 200 S
TMC SM 250 S
Engine
Scania DC13 Stage III Engine With Alternator
Diesel Tank Capacity
Ltrs
720
720
720
720
Dimensions
Units
TMC 220 S
TMC 250 S
TMC SM 200 S
TMC SM 250 S
Transport ( L x W x H )
Meter (Feet)
19.3 x 3.4 x 4.1 (63'4" x 11' 3" x 13' 7")
19.3 x 3.4 x 4.1 (63'4" x 11' 3" x 13' 7")
19.3 x 3.4 x 4.1 (63'4" x 11' 3" x 13' 7")
19.3 x 3.4 x 4.1 (63'4" x 11' 3" x 13' 7")

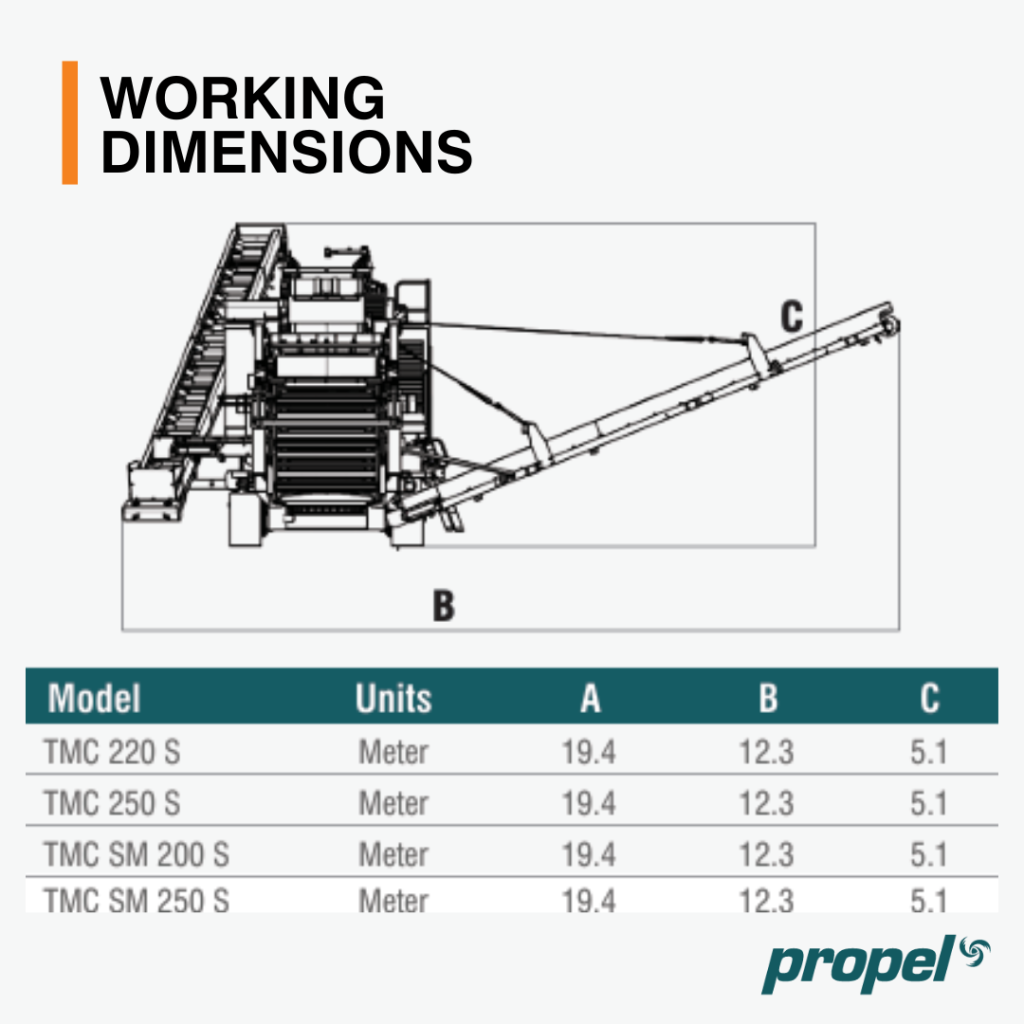

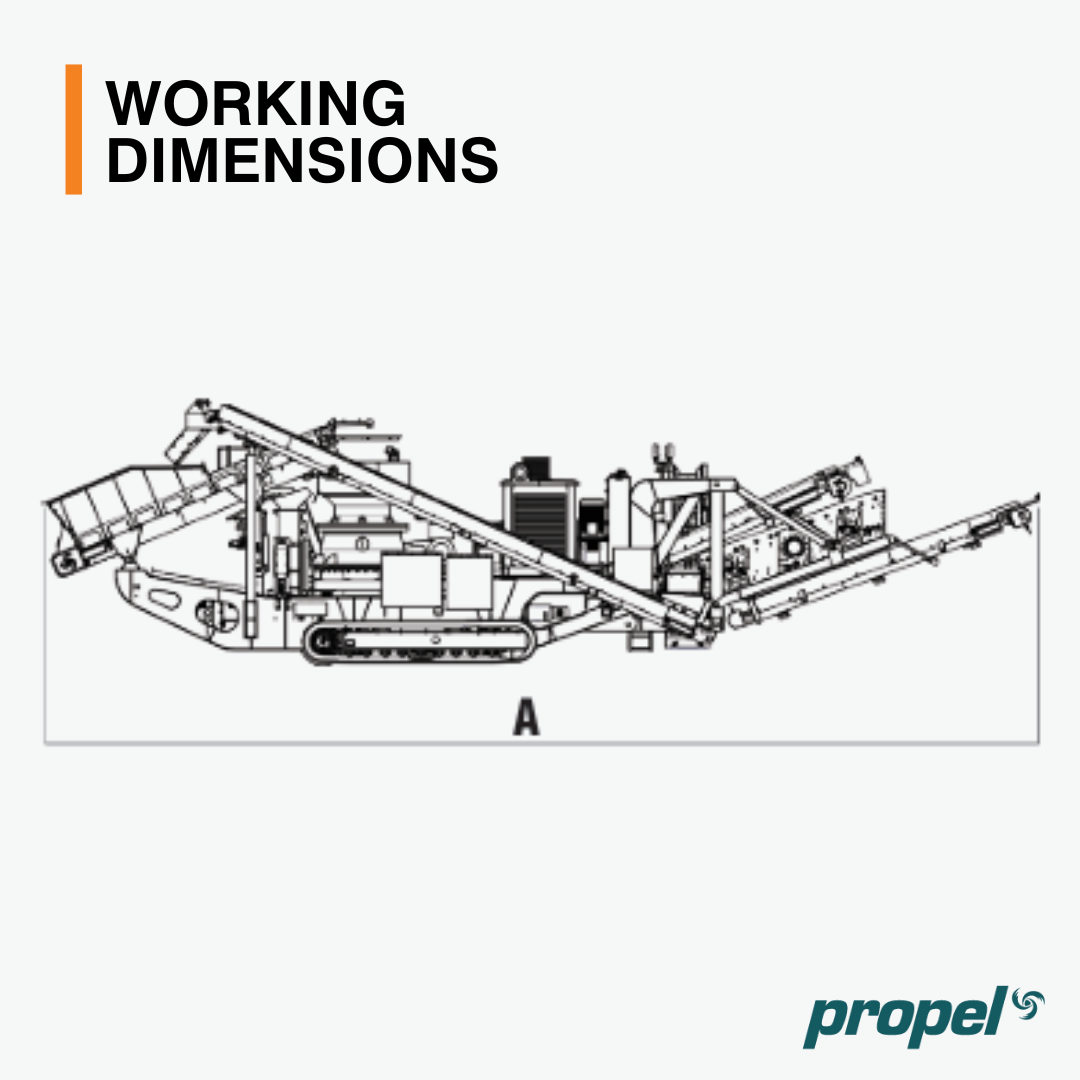

Working ( L x W x H )
Meter (Feet)
19.4 x 12.3 x 5.1 (63'9" x 40'6" x 16' 10")
19.4 x 12.3 x 5.1 (63'9" x 40'6" x 16' 10")
19.4 x 12.3 x 5.1 (63'9" x 40'6" x 16' 10")
19.4 x 12.3 x 5.1 (63'9" x 40'6" x 16' 10")
**Weight
kg (lbs)
58500 (128970)
58500 (128970)
58500 (128970)
58500 (128970)
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
