Track Mounted Cone

TMC QM Series

The Propel TMC QM Series delivers an exceptional blend of crusher speed, throw, and cavity design, engineered to boost capacity and enhance product quality. Built for durability, this series ensures reliable performance in heavy-duty, continuous operations.

Highlights and information

Highlights of Track Mounted Cone TMC QM

Feeding Control System: VFD and metal detector ensure smooth, continuous feed and impactor protection.

Cone Crusher: Dual-dust seal with high productivity and flexible crushing capabilities.

Power Source with Acoustic Canopy: Fuel-efficient, water/dust-resistant engine with built-in alternator.

Light Mast: Built-in LED lighting for safe, effective night operations.

Dust Suppression System: Reduces dust at discharge for a cleaner, safer work environment.

Motorized Pulley: High-efficiency, low-maintenance design for maximum uptime.

Track: Heavy-duty 500mm wide track for stability and performance.

Wireless Tracking Remote: Full-function remote ensures safe and easy control on the move.

IoT Enabled: Real-time tracking and diagnostics reduce downtime and boost efficiency.

More Features: Dual-speed track, safety guards, dual power mode, quick setup, and low-noise operation with emergency stop system.

TECHNICAL DATA

Series
Units
TMC SQM 320
TMC Q350
Feed Opening Size (W x L)
mm (inch)
100 (3.9)
260 (10.2)
CSS Range
mm (inch)
15 - 35 (0.6 - 1.4)
30 - 50 (1.2 - 2.0)
*Capacity
TPH
180- 375
215 - 540
Hopper / Feeder
Units
TMC SQM 320
TMC Q350
Hopper Capacity
m3
7
7
Feed Belt Width (mm)
mm
1200
1200
Main Conveyor
Units
TMC SQM 320
TMC Q350
Belt Width
mm
1200
1200
Discharge Height
mm
3400
3400
Stock Pile Capacity
m3
58.4 @ 40°
58.4 @ 40°
Under Carriage
Units
TMC SQM 320
TMC Q350
Shoe Width
mm
500
500
Hydraulic Tank Capacity
Ltrs
420
420
Power Unit
Units
TMC SQM 320
TMC Q350
Engine
Scania DC13 Stage III Engine With Alternator
Diesel Tank Capacity
Ltrs
700
700
Dimensions
Units
TMC SQM 320
TMC Q350
Transport ( L x W x H )
Meter (Feet)
17.6 x 3.3 x 3.9
(57' 8" x 10' 9" x 12' 1'')
17.6 x 3.3 x 3.9
(57' 8" x 10' 9" x 12' 1'')

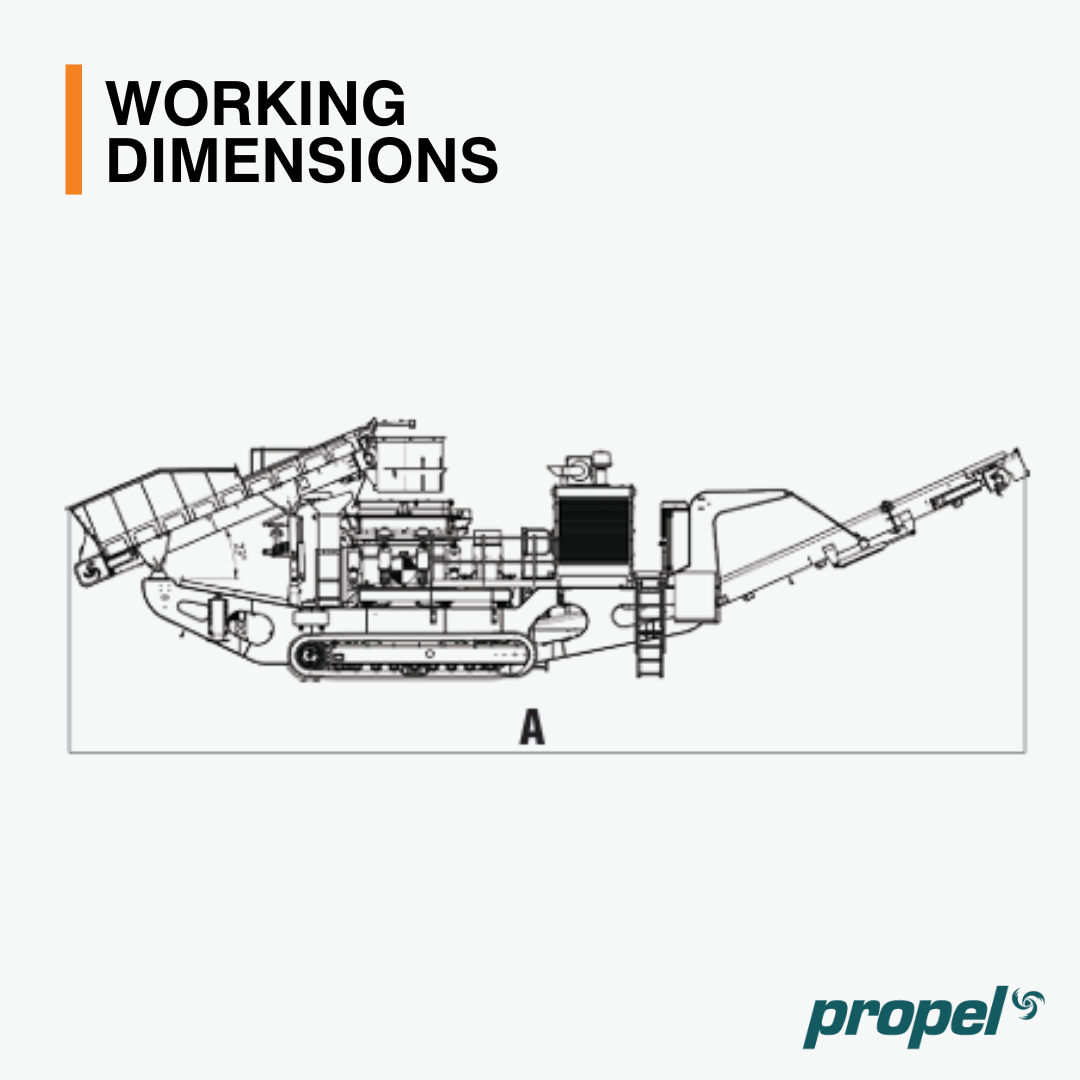

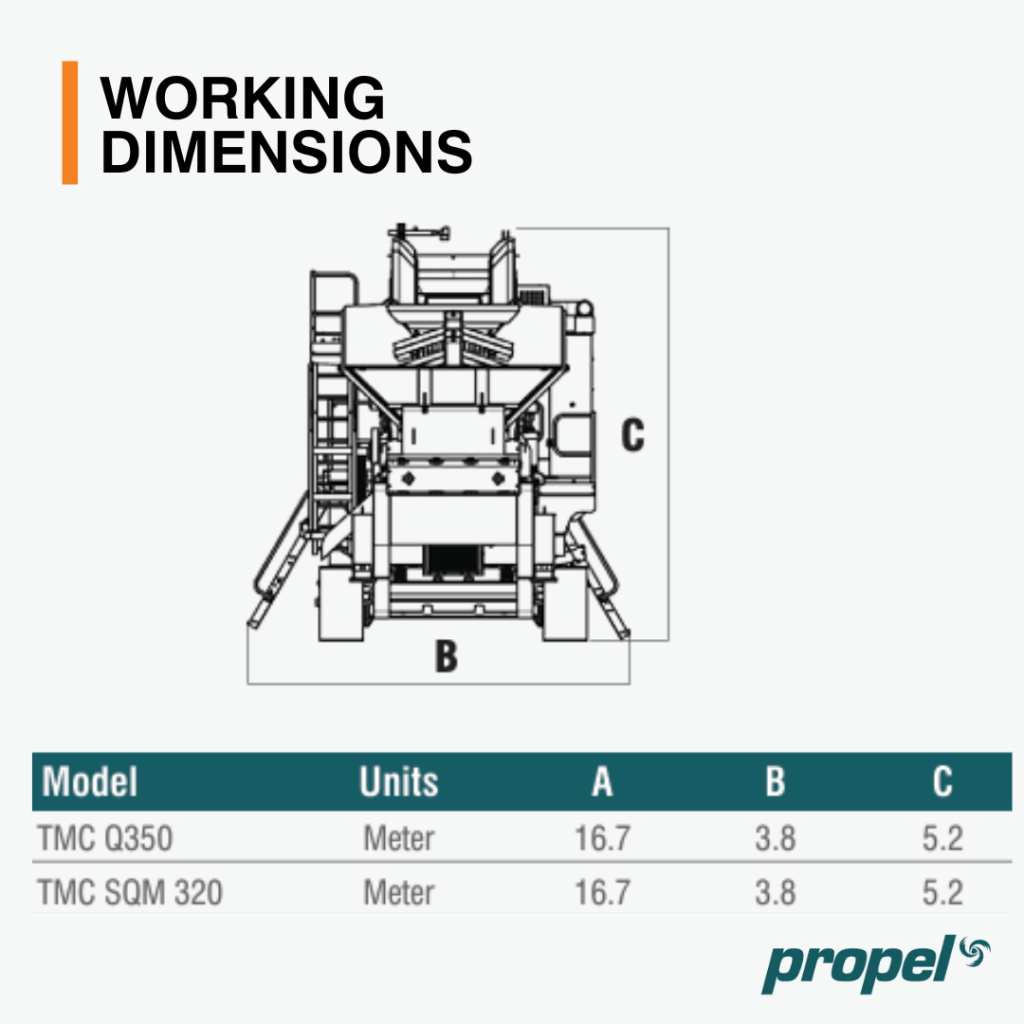

Working ( L x W x H )
Meter (Feet)
16.7 x 3.8 x 5.2
(54' 9" x 12' 7" x 17'3")
16.7 x 3.8 x 5.2
(54' 9" x 12' 7" x 17'3")
**Weight
kg (lbs)
56500 (124561)
56500 (124561)
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
