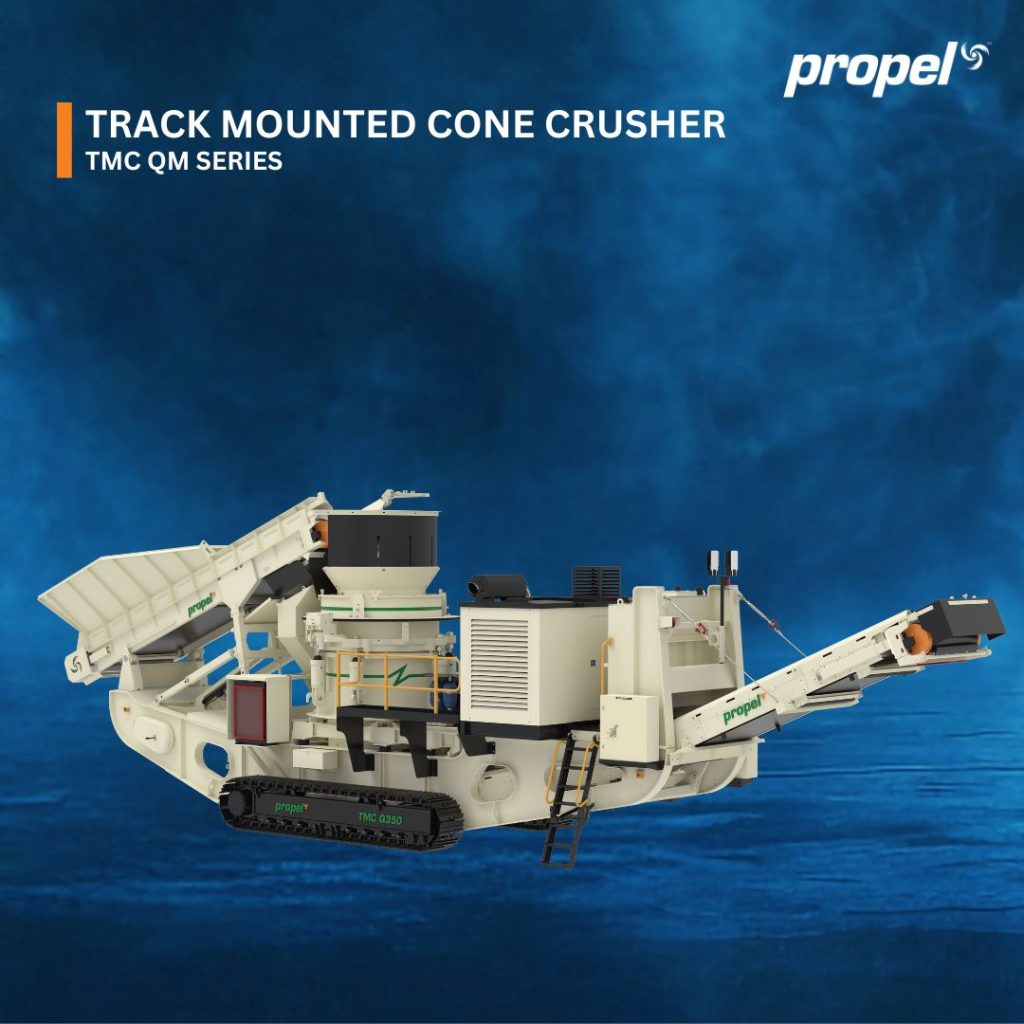

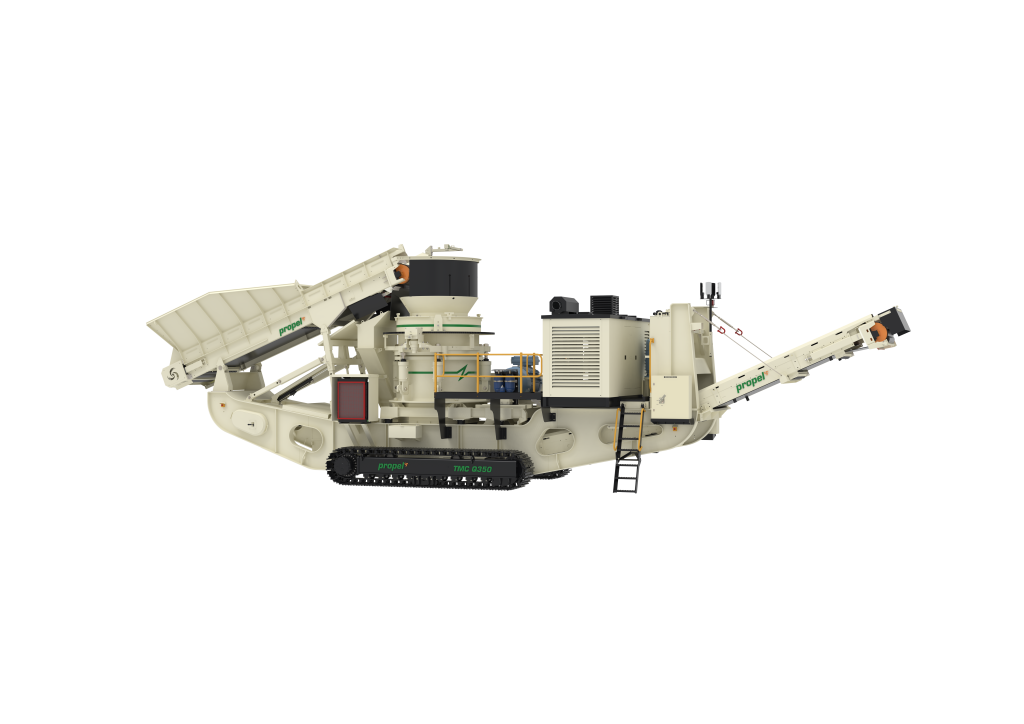

Track Mounted Cone

TMC QM Series

The Propel TMC QM Series delivers an exceptional blend of crusher speed, throw, and cavity design, engineered to boost capacity and enhance product quality. Built for durability, this series ensures reliable performance in heavy-duty, continuous operations.

Highlights and information

Highlights of Track Mounted Cone TMC QM

Feeding Control System: VFD and metal detector ensure smooth, continuous feed and impactor protection.

Cone Crusher: Dual-dust seal with high productivity and flexible crushing capabilities.

Power Source with Acoustic Canopy: Fuel-efficient, water/dust-resistant engine with built-in alternator.

Light Mast: Built-in LED lighting for safe, effective night operations.

Dust Suppression System: Reduces dust at discharge for a cleaner, safer work environment.

Motorized Pulley: High-efficiency, low-maintenance design for maximum uptime.

Track: Heavy-duty 500mm wide track for stability and performance.

Wireless Tracking Remote: Full-function remote ensures safe and easy control on the move.

IoT Enabled: Real-time tracking and diagnostics reduce downtime and boost efficiency.

More Features: Dual-speed track, safety guards, dual power mode, quick setup, and low-noise operation with emergency stop system.

TECHNICAL DATA

Series
Units
TMC Q250
TMC SQM 230
Feed Opening Size (W x L)
mm (inch)
220 (8.7)
85 (3.3)
CSS Range
mm (inch)
26 - 45 (1.0 - 1.8)
15-30 (0.6-1.2)
*Capacity
TPH
150 - 380
125-250
Hopper / Feeder
Units
TMC Q250
TMC SQM 230
Hopper Capacity
m3
7
7
Feed Belt Width (mm)
mm
1200
1200
Main Conveyor
Units
TMC Q250
TMC SQM 230
Belt Width
mm
1200
1200
Discharge Height
mm
3350
3350
Stock Pile Capacity
m3
56 @ 40°
56 @ 40°
Under Carriage
Units
TMC Q250
TMC SQM 230
Shoe Width
mm
500
500
Hydraulic Tank Capacity
Ltrs
450
450
Power Unit
Units
TMC Q250
TMC SQM 230
Engine
Scania DC09 Stage V Engine With Alternator
Engin Power
kW(hp)
289 kW (387 HP)
289 kW (387 HP)
Diesel Tank Capacity
Ltrs
500
500
Dimensions
Units
TMC Q250
TMC SQM 230
Transport ( L x W x H )
Meter (Feet)
18.3 x 3 x 3.8 (60' x 9' 10" x 12' 6 ")
18.3 x 3 x 3.8 (60' x 9' 10" x 12' 6 ")

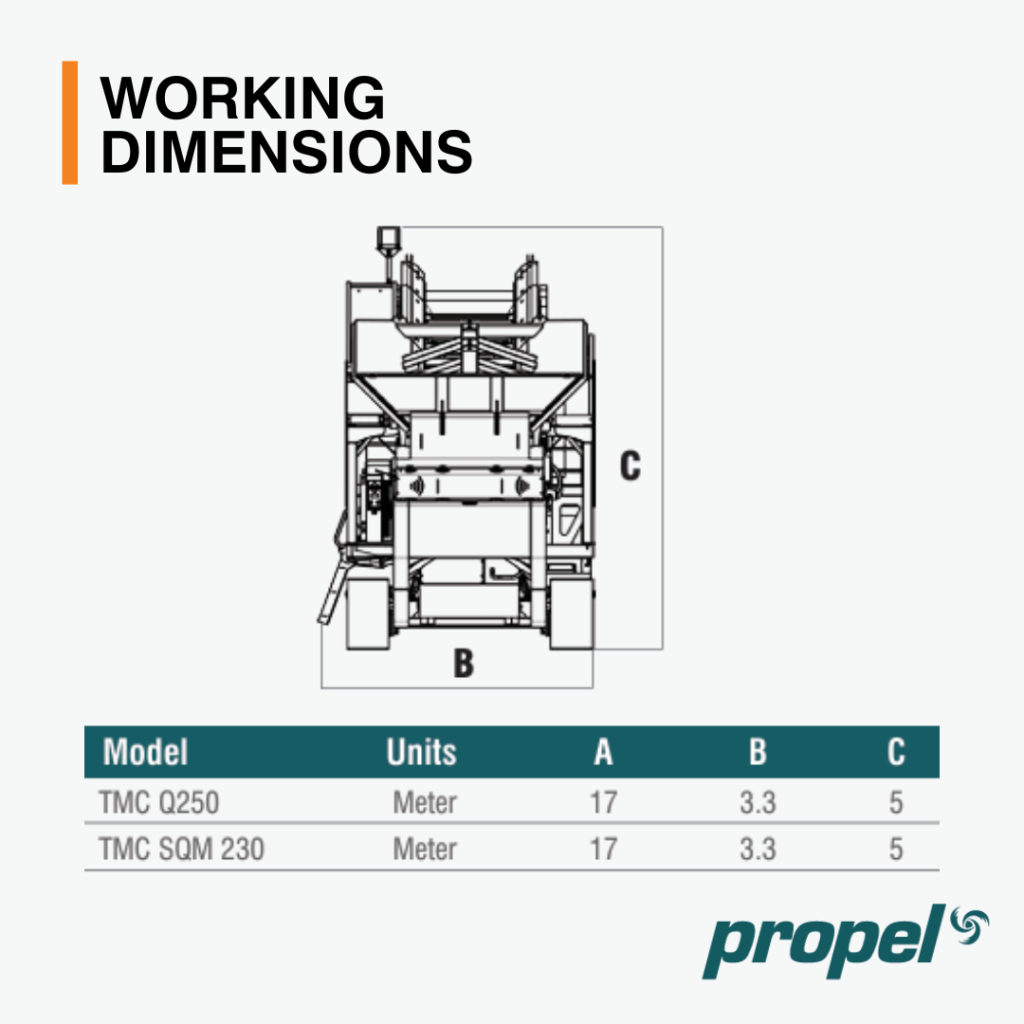

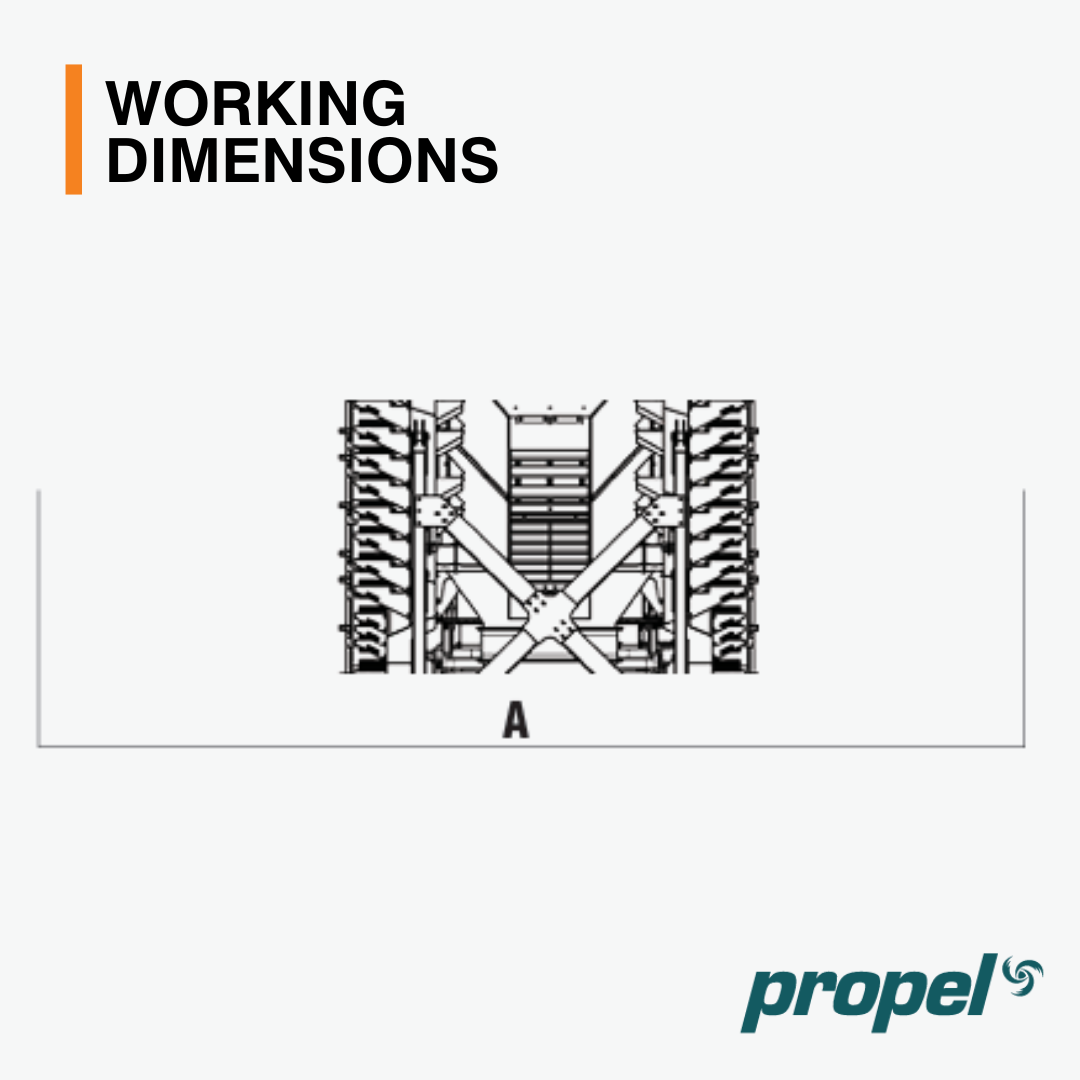

Working ( L x W x H )
Meter (Feet)
17 x 3.3 x 5 (55' 10" x 10' 10" x 16' 8")
17 x 3.3 x 5 (55' 10" x 10' 10" x 16' 8")
**Weight
kg (lbs)
48000 (105822)
48000 (105822)
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
