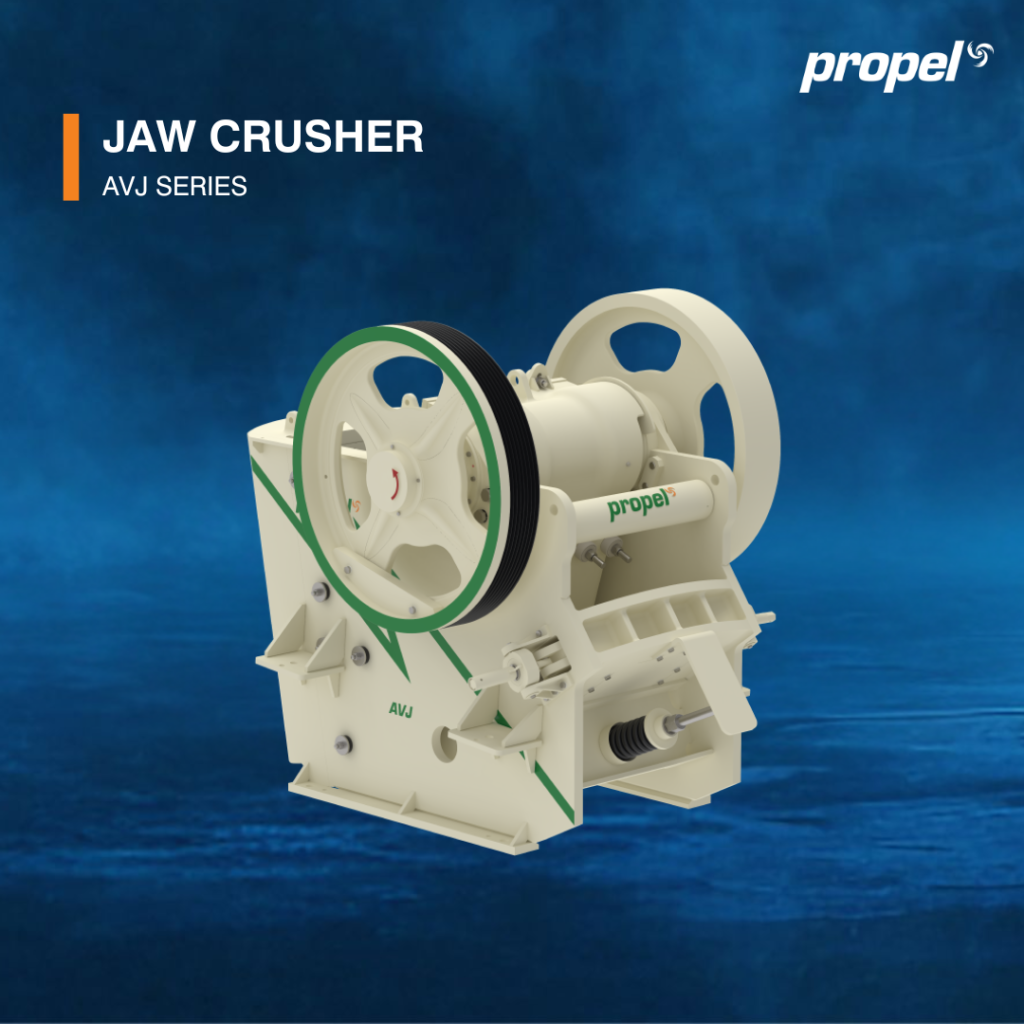

Jaw Crusher
AVJ Series

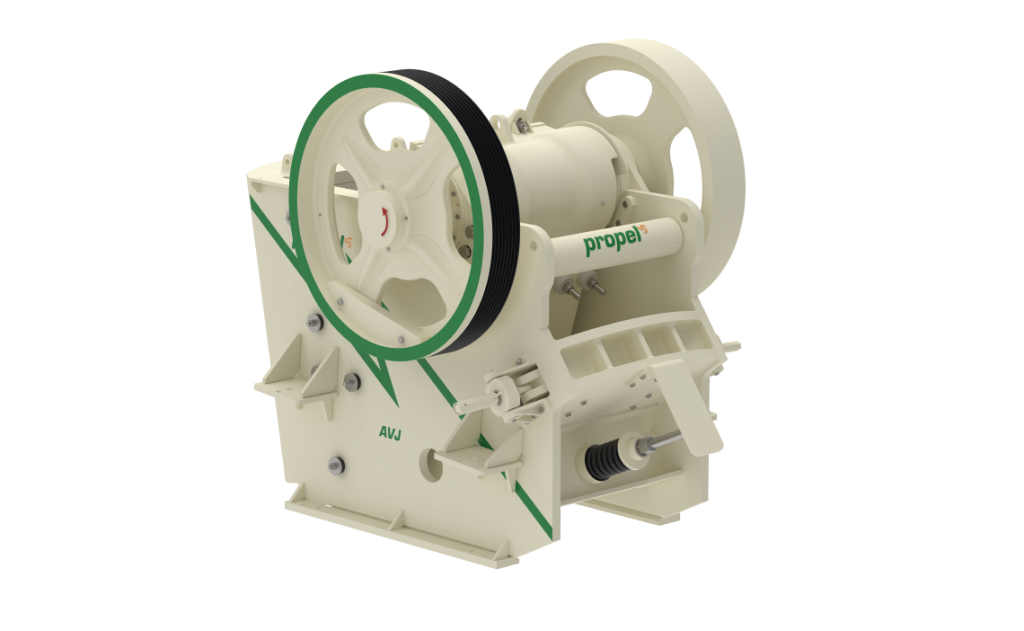

The Propel Jaw Crusher AVJ Series single toggle jaw crusher offers superior strength, reliability, and flexible mounting options. Its fully-welded design reduces production costs, while durable components and low maintenance needs ensure long-term efficiency and minimal downtime.
Highlights and information
Highlights of Static Equipment: Jaw Crusher (AVJ Series)
TECHNICAL DATA
Series | Units | AVJ 508 | AVJ 709 | AVJ 811 | AVJ 811 (S) | AVJ 912 | AVJ 1214 |
Feed Opening | mm (inch) | 570 x 800 (22.4 x 31.5) | 700 x 900 (27.6 x 35.4) | 840 x 1090 (33.1 x 42.9) | 750 x 1064 (29.5 x 41.9) | 980 x 1250 (38.6 x 49.2) | 1200 x 1400 (47.2 x 55.1) |
Feed Size (Max.) | mm (inch) | 450 (17.7) | 550 (21.6) | 715 (28.1) | 635 (25.0) | 830 (32.7) | 1020 (40.2) |
*Capacity | TPH | 75 - 300 | 75 - 350 | 150 - 500 | 150 - 400 | 200 - 700 | 350 - 800 |
CSS Range | mm (inch) | 50 - 175 (2.0 - 6.9) | 50 - 175 (2.0 - 6.9) | 75 - 225 (3.0 - 8.9) | 75 - 200 (3.0 - 7.9) | 100 - 250 (4.0 - 10.0) | 125 - 250 (5.0 - 10.0) |
Crusher Speed | 300 | 275 | 245 | 265 | 225 | 225 | |
Mounting Type (optional) | Skid | Skid | Skid | Skid / Wheel Mounted/ Crawler Mounted | Skid / Wheel Mounted | Skid | |
Jaw Plates | Interchangeable & Reversible | Interchangeable & Reversible | Interchangeable & Reversible | Interchangeable & Reversible | Reversible | Reversible | |
Lubrication | Grease | Grease | Grease | Grease | Grease | Grease | |
Construction | High grade carbon steel with welded structure | ||||||
Motor Power | kW (hp) | 55 (75) | 75 (100) | 110 (150) | 110 (150) | 160 (215) | 220 (300) |
Weight | kg (lbs) | 10000 (22046) | 14500 (31967) | 22000 (48502) | 20700 (45636) | 32000 (70548) | 162000 (357149) |
Hydraulic Wedge & Refraction Option | N/A | N/A | YES | YES | YES | YES | |
Note: All the above technical details may vary at any time during the engineering process & design development
