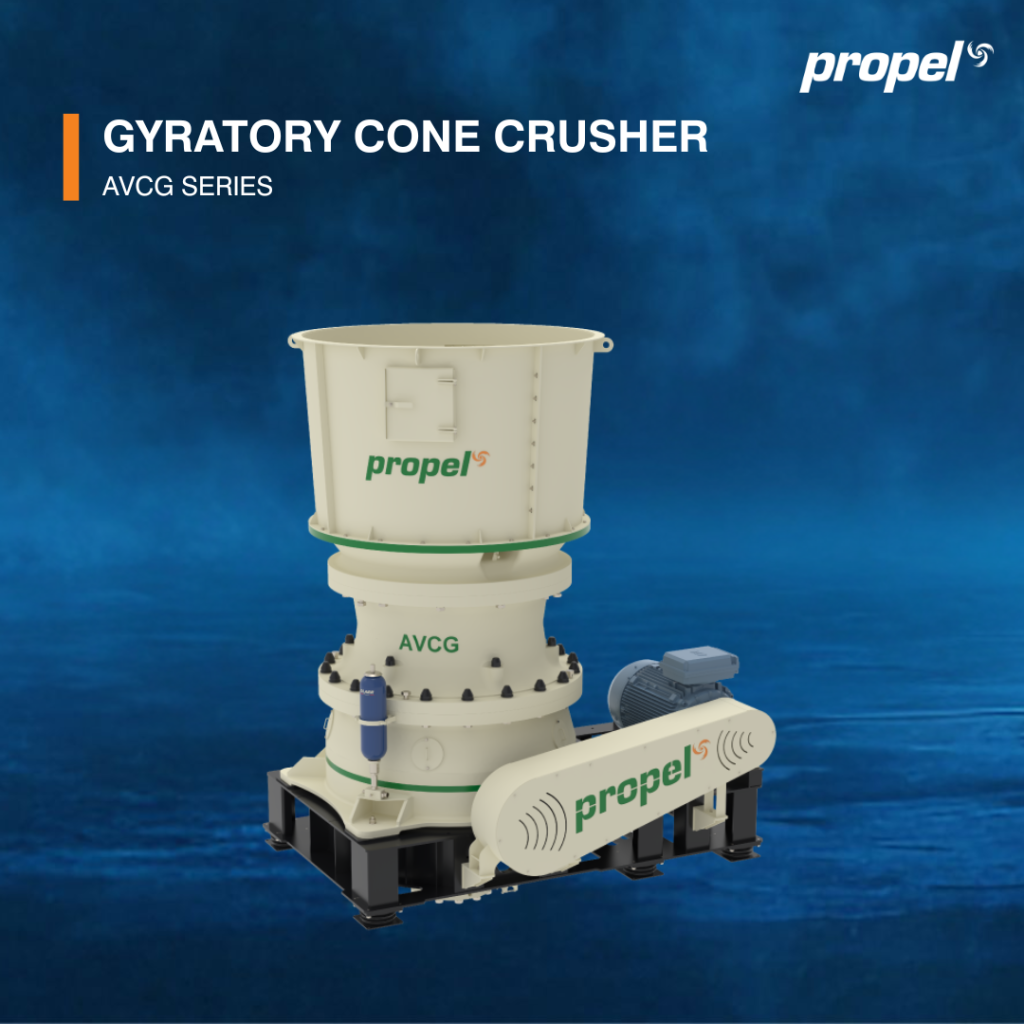

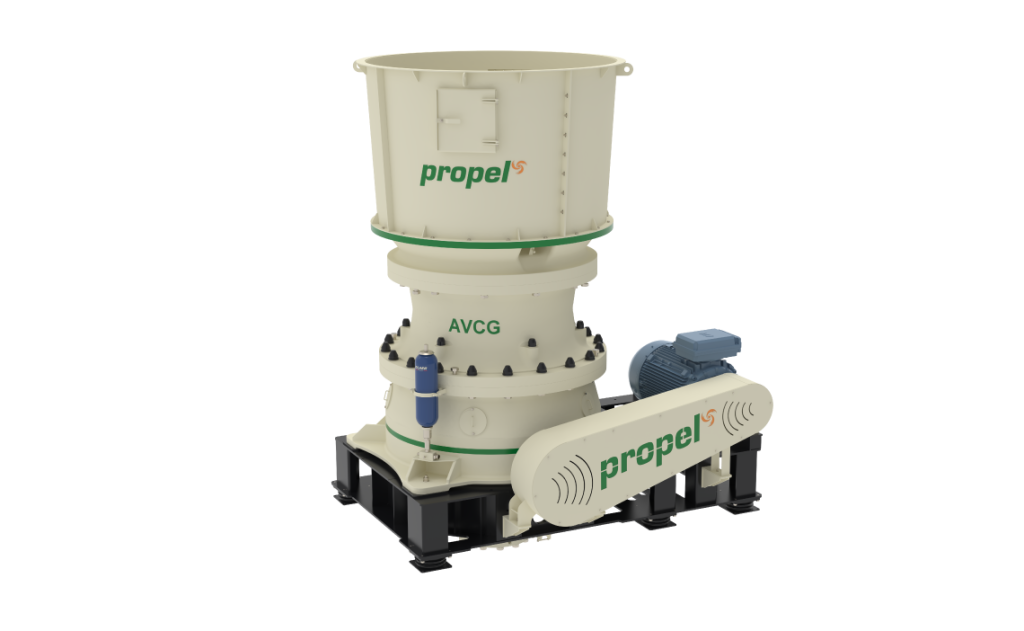

Gyratory Cone Crusher

AVCG Series

Propel Gyratory Cone Crushers offer high capacity with minimal maintenance and downtime. Designed for consistent performance under varying feed conditions, they feature a large feed opening, steep cavity, and powerful stroke for an efficient high-reduction ratio.

Highlights and information

Highlights of Static Equipment: Gyratory Cone Crusher (AVCG Series)

High Performance: Delivers strong crushing with low operational costs.

Efficient Design: Two-piece concave and larger discharge area enhance output.

Easy Maintenance: Removable top shell liner and automated CSS adjustment.

Consistent Feed: Constant feed opening with adjustable stroke.

Durable Spider Bush: Prevents capacity loss from bearing wear.

Quiet Operation: Engineered for low-noise performance.

TECHNICAL DATA

Series
Units
AVCG 350
AVCG 600
Feed Opening
mm
(inch)
Extra Coarse (380) / Coarse (300)
Extra Coarse (15.0) / Coarse (11.8)
Extra Coarse (450) / Coarse (360)
Extra Coarse (17.7) / Coarse (14.2)
*Capacity
TPH
300 - 400
375 - 550
CSS Range
mm
(inch)
30 - 50
(1.2 - 2.0)
50 - 70
(2.0 - 2.8)
Mounting Type (Optional)
Skid
Skid
Design Type
Bush type
Hydro dynamic bush bearing
Lubrication
Pressurised oil & grease
Pressurised oil & grease
Construction
High Grade Carbon Steel Casting
High Grade Carbon Steel Casting
Motor Power
kW
(hp)
220 - 250
(295.0 - 335.2
315
(420)
Weight
kg (lbs)
19500 (42990)
38000 (83776)
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
