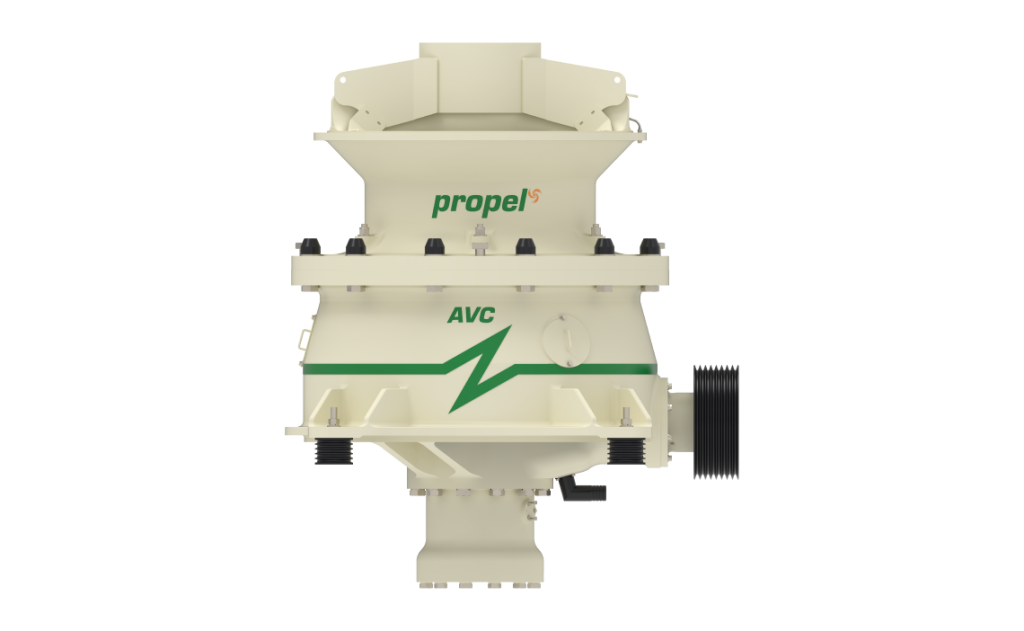

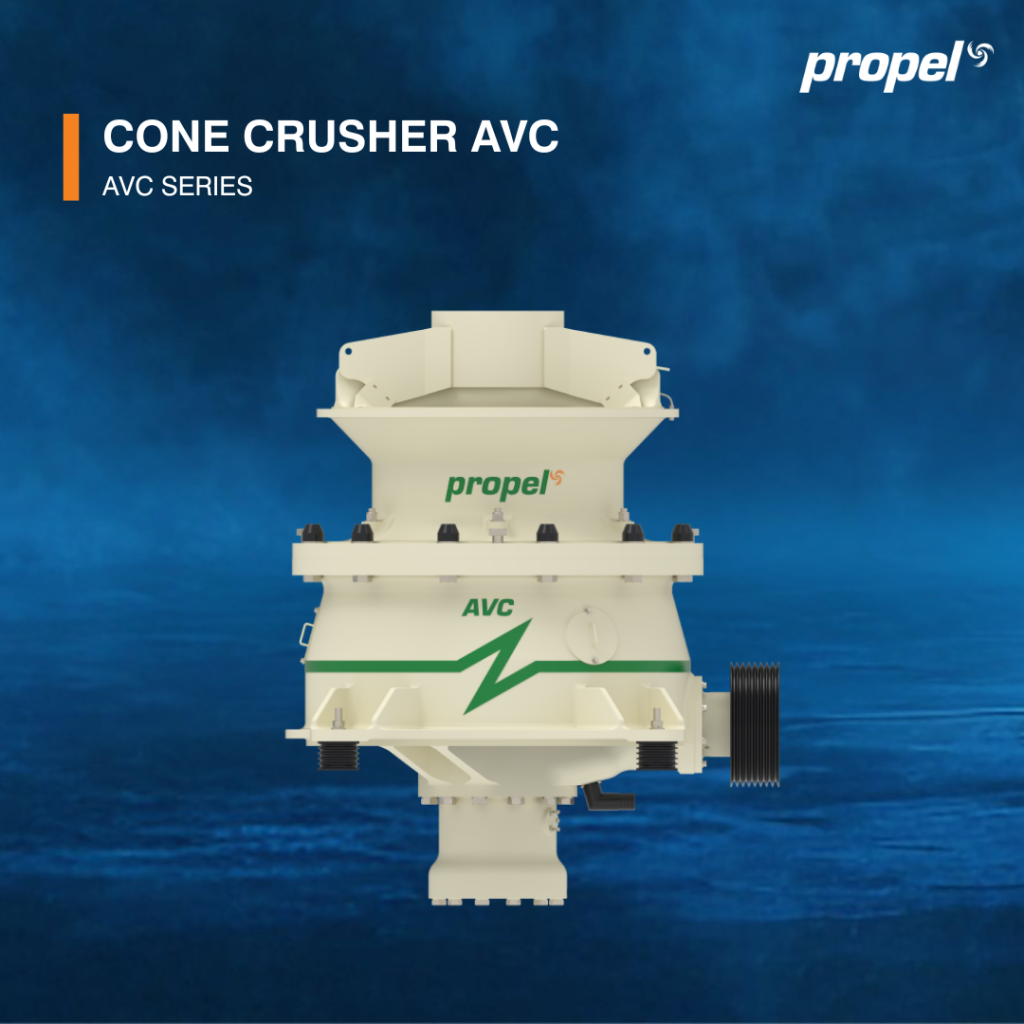

Cone Crusher AVC

AVC Series

The Propel AVC Series Cone Crushers deliver superior crushing efficiency and high-quality end products at a lower cost per ton. This is achieved through an optimised blend of crusher speed, throw, and cavity design.

Highlights and information

Highlights of Static Equipment: Cone Crusher (AVC Series)

Versatile Chambers: Designed for coarse or fine feed in open or closed circuits.

Dual-Dust Seal: Ensures cleaner, longer-lasting operation.

High Productivity: Large mantle and optimised speed boost output.

User-Friendly Controls: Equipped with an intuitive SMS system.

TECHNICAL DATA (Table A & Table B)

Table A

Coarse Chamber
Series
Units
AVC 125
AVC 160
AVC 220
AVC 250
AVC 350
AVC 600
Feed Opening
mm
(inch)
145
(5.7)
180
(7.1)
220
(8.7)
230
(9.1)
EC 250 | C 200
(9.8) | (7.9)
EC 300 | C 240 | M180
(11.8) | (9.4) | (7.0)
Feed Size (Max.)
mm
(inch)
120
(4.7)
150
(6.0)
190
(7.5)
200
(7.9)
EC 220 | C 180
(8.7) | (7.1)
EC 270 | C 215 | M160
(10.6) | (8.4) | (6.2)
*Capacity
TPH
80-110
100-225
140-320
160-340
300 - 400
360-630
CSS Range
mm
(inch)
22 - 30
(0.9 - 1.2)
24 - 32
(0.9 - 1.3)
24 - 35
(0.9 - 1.4)
26 - 35
(1.0 - 1.4)
20 - 45
(0.8 - 1.8)
20 - 50
(0.8 - 1.9)
Mounting Type (Optional)
Skid
Skid
Skid / Wheel Mounted / Crawler Mounted
Skid
Motor Power
kW
(hp)
75
(100)
110
(150)
160
(215)
187
(250)
220 - 315
(295 - 422)
250 - 355
(335 - 475)
Weight
kg (lbs)
6500
(14330)
10000
(22046)
13300
(29322)
13300
(29322)
16600
(36597)
25000
(55116)
Design Type : Bush Type | Lubrication : Pressurised oil & grease | Construction : High grade carbon steel casting
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development

Table B

Fine Chamber
Series
Units
SM 100
SM 150
SM 200
SM 250
Feed Opening
mm
(inch)
50
(2.0)
75
(3.0)
95
(3.7)
95
(3.7)
Feed Size (Max.)
mm
(inch)
45
(1.8)
60
(2.4)
75
(3.0)
75
(3.0)
*Capacity
TPH
60-90
85-140
120-185
150-240
CSS Range
mm
(inch)
12 - 28
(0.5 -1.1)
12 - 28
(0.5 -1.1)
14 - 28
(0.5 - 1.1)
14 - 35
(0.5 - 1.4)
Mounting Type (Optional)
Skid
Skid
Skid / Wheel Mounted / Crawler Mounted
Motor Power
kW
(hp)
75
(100)
110
(150)
160
(215)
187
(250)
Weight
kg (lbs)
6600
(14551)
10100
(22267)
13400
(29542)
13500
(29763)
Design Type : Bush Type | Lubrication : Pressurized oil & grease | Construction : High grade carbon steel casting
*Details may vary based on application
Note: All the above technical details may vary at any time during the engineering process & design development
